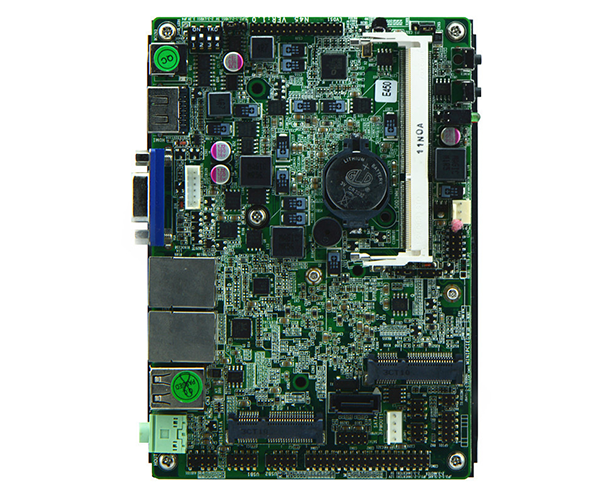

AMD T56N 3.5 inch EPIC industrial motherboard DC12V

Onboard AMD T56N dual core processor
AMD Hudson M1 chipset
Integrated HD6310 graphics core, supports VGA/HDMI/LVDS sync/async
1 DDR3 2GB express memory, Max. 4G
2 mini PCIe slot, supports SSD/wireless Wifi
Supports 4 x RS232 COM headers, COM2 supports RS232/422/485 mode
Integrated 2 x Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Supports 6 USB 2.0 headers

　　
Onboard AMD T56N dual core processor
AMD Hudson M1 chipset
Integrated HD6310 graphics core, supports VGA/HDMI/LVDS sync/async
1 DDR3 2GB express memory, Max. 4G
2 mini PCIe slot, supports SSD/wireless Wifi
Supports 4 x RS232 COM headers, COM2 supports RS232/422/485 mode
Integrated 2 x Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Supports 6 USB 2.0 headers
Product Model EPIC-N45
CPU AMD T56N dual core processor, 1.65GHz
Chipset AMD Hudson M1 chipset
Memory 1 x SO-DIMM DDRIII slot, supports 1066/800 MHz, Max. 4Gb
Video Integrated AMD HD6320 graphics, provides VGA, HDMI, LVDS display output,
supports sync/async, 1080P video, LVDS supports dual channel 24 bit
Expansion Slot 1 x mini PCI-e slot, supports wifi/3G module
LAN 2 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE function
Storage 1 x SATA2 HDD interface
1 x JSATAII slot
1 x MSATA slot, supports SSD
Audio Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out

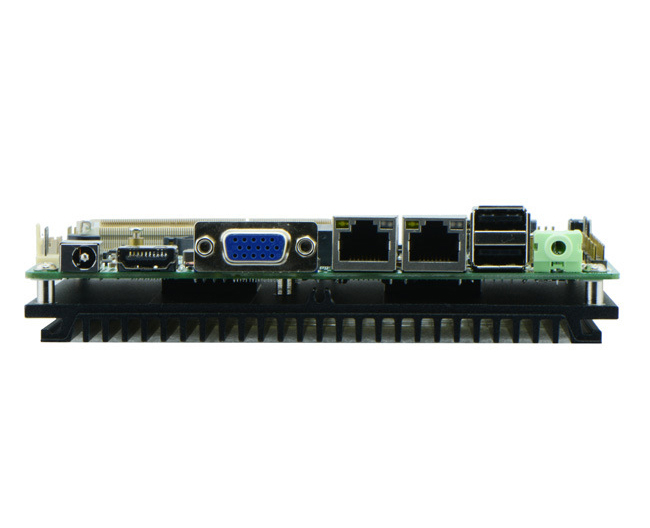

Rear I/O Panel 1 x 12V DC_JACK input
1 x HDMI port
1 x VGA port
2 x USB 2.0 ports
2 x RJ45 LAN ports
1 x AUDIO port(Line out)
1 x POWER, 1 x RESET, 1x LED1(POWERLED/HDDLED)
Internal I/O Interface 1 x LVDS connector, 2 x15-pin
1 x JVGA1 header, same signal with DB15, 2 x 5-pin
4 x RS232 connectors, COM1 supports RS232/485/422 function
1 x TX-RXCOM RS422/485 header
4 x USB 2.0 connectors
1 x KB2 header
1 x AUDIO header, front panel audio interface, 2 x 5-pin
1 x FP1 front panel function button and indicator light header, 2 x 5-pin
1 x CIR header
1 x PWROUT HDD power supply headers
1 x LVDS INVERTER connector
Fan connector 1 x CPU Fan connector, 3-pin
GPIO Supports 4 channel GPIO
BIOS AMI 16MB Flash ROM
Watch Dog Supports hardware reset function(256 level, 0-255 seconds)
PSU DC_12V single power supply input
Working Temp -10℃～60℃
Storing Temp -20℃～70℃
Working Humidity 5%-95% relative humidity, non-condensing
Dimension 148mm x 102mm
