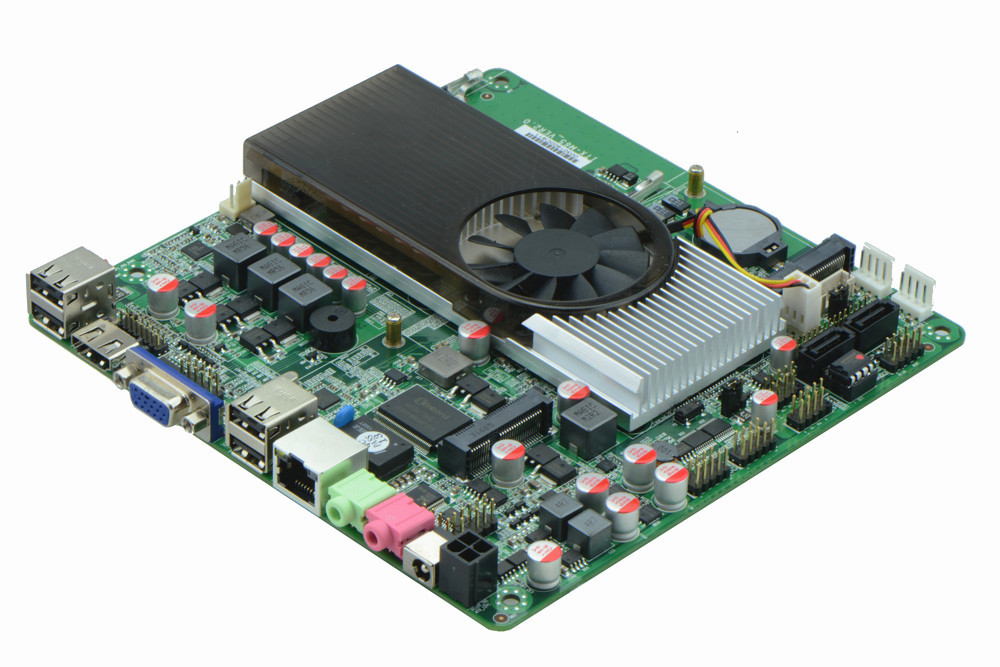

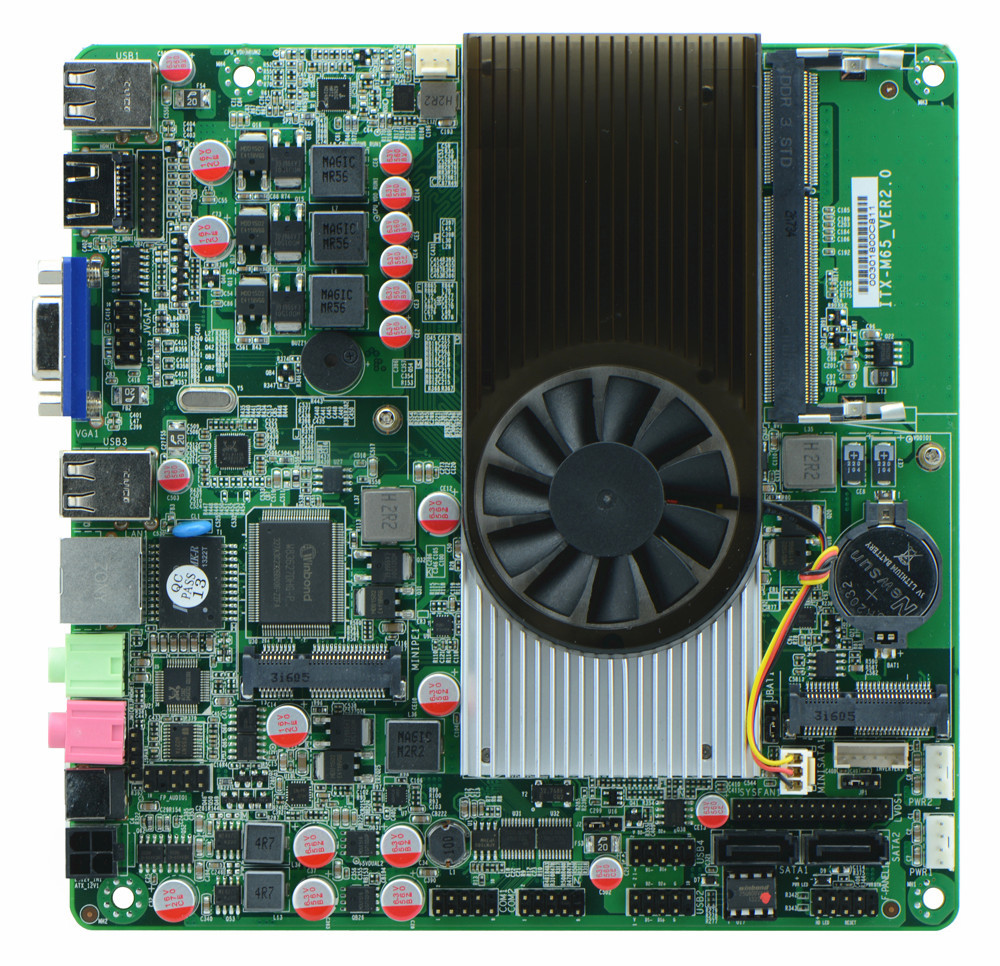

AMD N330 thin ITX motherboard TITX-M65

Onboard AMD N330 2.3G / N55 2.6G dual core processor
RS880M+SB820M express chipset
SO-DIMM DDR3 memory, Max. 4Gb
Integrated ATI HD4200 graphics core, supports VGA, dual HDMI and LVDS sync/async
Onboard 2 mini-PCIE slots, supports SSD/Wifi
1 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller

　　
Onboard AMD N330 2.3G / N55 2.6G dual core processor
RS880M+SB820M express chipset
SO-DIMM DDR3 memory, Max. 4Gb
Integrated ATI HD4200 graphics core, supports VGA, dual HDMI and LVDS sync/async
Onboard 2 mini-PCIE slots, supports SSD/Wifi
1 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Product Model ITX-M65
CPU Onboard AMD N550 2.6GHz dual core processor(ITX-M65_N55 configures)
Onboard AMD N330 2.3GHz dual core processor(ITX-M65_N33 configures)
Chipset RS880M+SB320M express chipset
Memory 1 x SO-DIMM DDR3 memory slot, supports 1066/800 Mhz, Max. 4GB.
Video Integrated AMD HD4200 graphics core, supports 1080P HD
Supports VGA/HDMI/LVDS display output, LVDS supports dual channel 24 bit
Expansion Slot 1 x mini PCI-e slot, supports wifi
LAN 1 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE booting
Storage 2 x SATA2 HDD interface
1 x MSATA slot, supports SSD
Audio Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out.

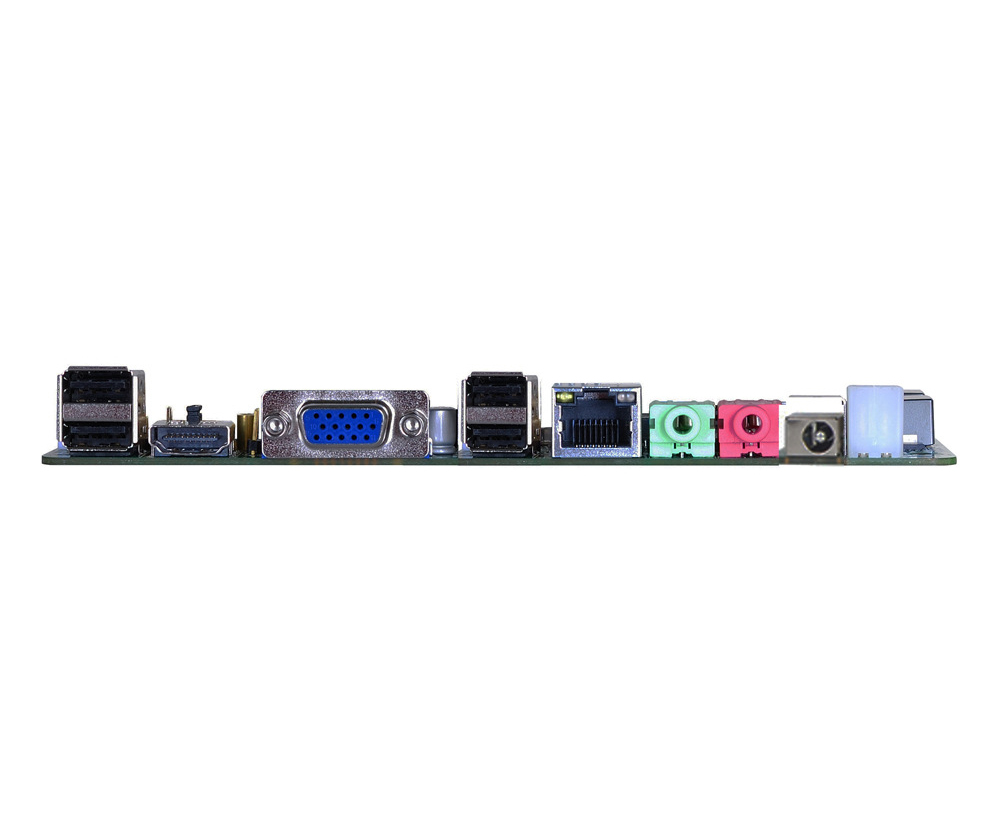

Rear I/O Panel 1 x 12V DC_JACK input
1 x HDMI port
1 x VGA port
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x Line out(green)
1 x MIC(red)
Internal I/O Interface 1 x LVDS connector, 2 x15-pin
1 x JHDMI header, same signal as HDMI
1 x JVGA header, same signal with DB15
2 x RS232 connectors
4 x USB 2.0 connectors
1 x audio connector(front panel audio port)
1 x CD-IN power amplifier connector
1 x FP1 front panel function button and indicator light header, 2 x 5-pin
1 x ATX_12V power JACK, can be +12v input and output power interface
2 x PWROUT HDD power supply connectors
1 x LVDS INVERTER connector
Fan connector 1 x CPU Fan connector and 1 x System Fan connector, 3-pin
GPIO Supports 4 channel GPIO
BIOS AMI 8MB DPI Flash ROM
Watch Dog Supports hardware reset function(256 level, 0-255 seconds)
PSU DC_12V single power supply input
Working Temp -10℃～60℃
Storing Temp -20℃～70℃
Working Humidity 0%-95% relative humidity, non-condensing
Dimension 170mm x 170mm
Mini ITX form factor
