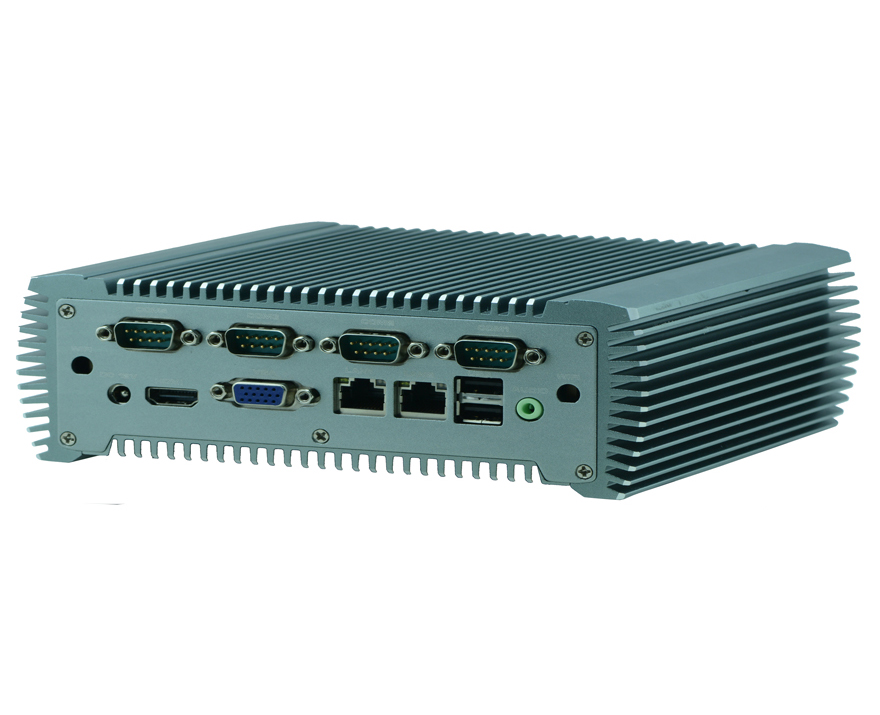

EPC-B263L
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
2*RTL 8111E GbE port, support wake on LAN
I/O Interfaces:6xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
2*RTL 8111E GbE port, support wake on LAN
I/O Interfaces:6xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
2*RTL 8111E GbE port, support wake on LAN
I/O Interfaces:6xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
| Model No. | EPC-B263L | |
| Processor System | CPU | Intel Atom N2600 |
| Frequency | 1.66GHz | |
| Core Number | 2C | |
| Chipset | Intel NM10 | |
| Fanless | Yes | |
| Memory | Technology | DDR3 1333/1066 MHz |
| Max. Capacity | 4GB | |
| Socket | 1x 204-pin SODIMM | |
| Graphic | Controller | Intel HD 3600 Graphic |
| VGA | 1920X1200@60HZ | |
| HDMI | 1920X1200@60HZ | |
| Audio | Codec | Realtek ALC662 |
| Interface | 1x Phone Jack for Line-out | |
| Ethernet | Controller | Realtek RTL8111E |
| Speed | 10/100/1000Mbps | |
| Interface | 2x RJ45 | |
| Storage | Type | SATAII |
| Installation | 1 x m-SATA Socket | |
| Type | SATAII | |
| Installation | 1x 2.5” HDD/SSD Drive Bay | |
| I/O | Serial Port | 6x RS232(COM2 supports RS485), DB9 Male |
| Digital I/O | - | |
| USB 2.0 | 6x Type A | |
| USB 3.0 | - | |
| Power-On/Reset Button | 1x Power On/Off, 1x Reset | |
| Remote | - | |
| LED | - | |
| Antenna Hole | 2x SMA Antenna Holes | |
| Expansion Interface | Mini PCIe | 1x Full-sized Socket with SIM Card Reader(SIM socket available at I/O) |
| PCI | - | |
| PCI Express | - | |
| Watchdog Timer |
Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable |
|
| Power | Power Type | Desktop Power Adapter |
| Power Supply Voltage | 12 VDC | |
| Connector | DC Jack | |
| Power Adapter |
AC to DC, AC 90 to 240 VAC Input, DC 12VDC /5A 60W |
|
| Environment | Operating Temperature | 00°C~45°C (with Industrial-grade Components) |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 5%~95%, Non-condensing | |
| Vibration |
IEC 60068-2-64, 0.5Grms, Random 5~500Hz, 40 Mins/Axis |
|
| Mechanical | Dimension(W x H x D) | 182x63.5x156mm |
| Construction | Aluminum + SGCC | |
| Weight | 1.4kg | |
| Mounting | Wallmount | |
| Driver Support | Microsoft Windows | Yes |
| Linux | Yes | |
| Certification | EMC | CE,FCC Class B |
-
