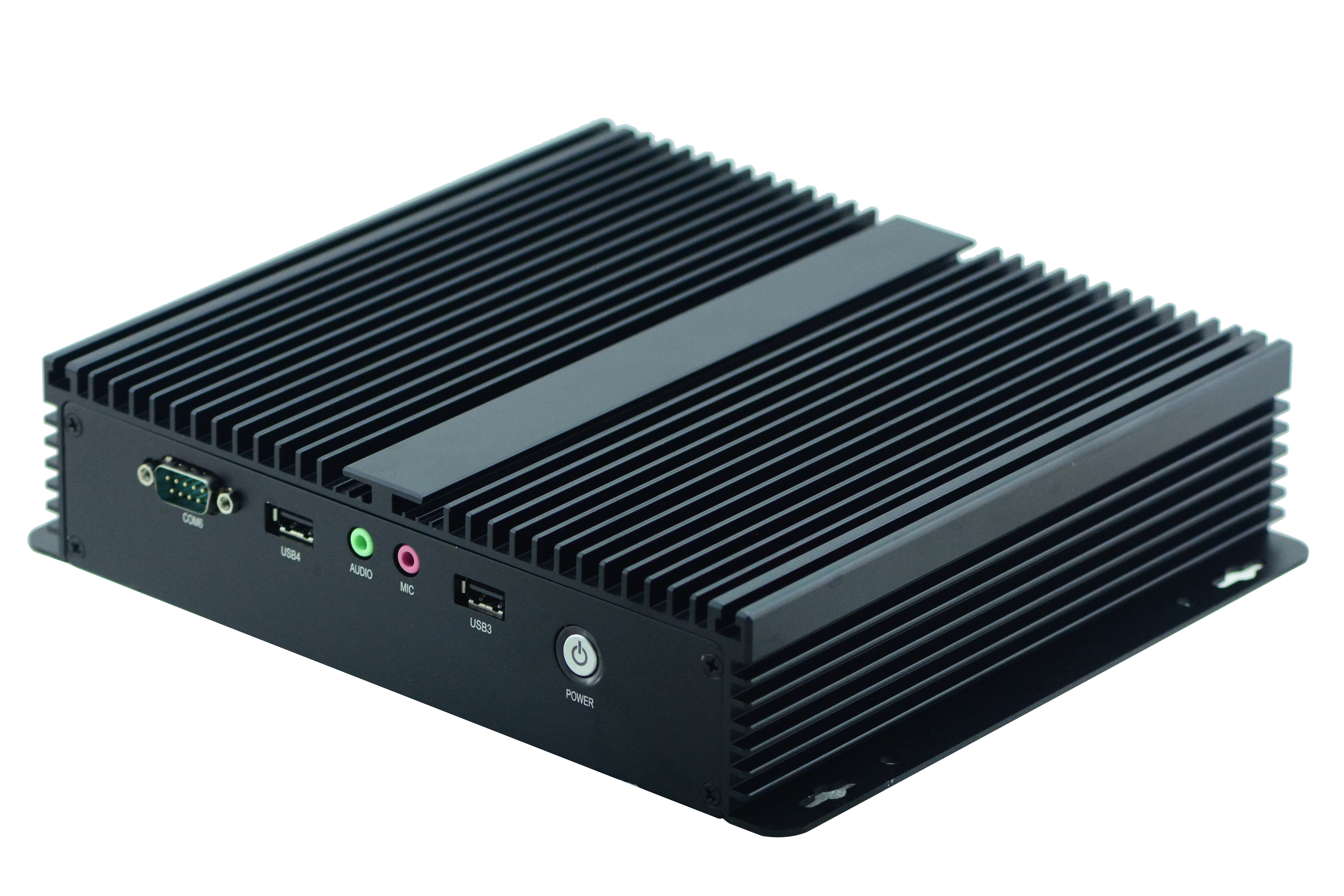

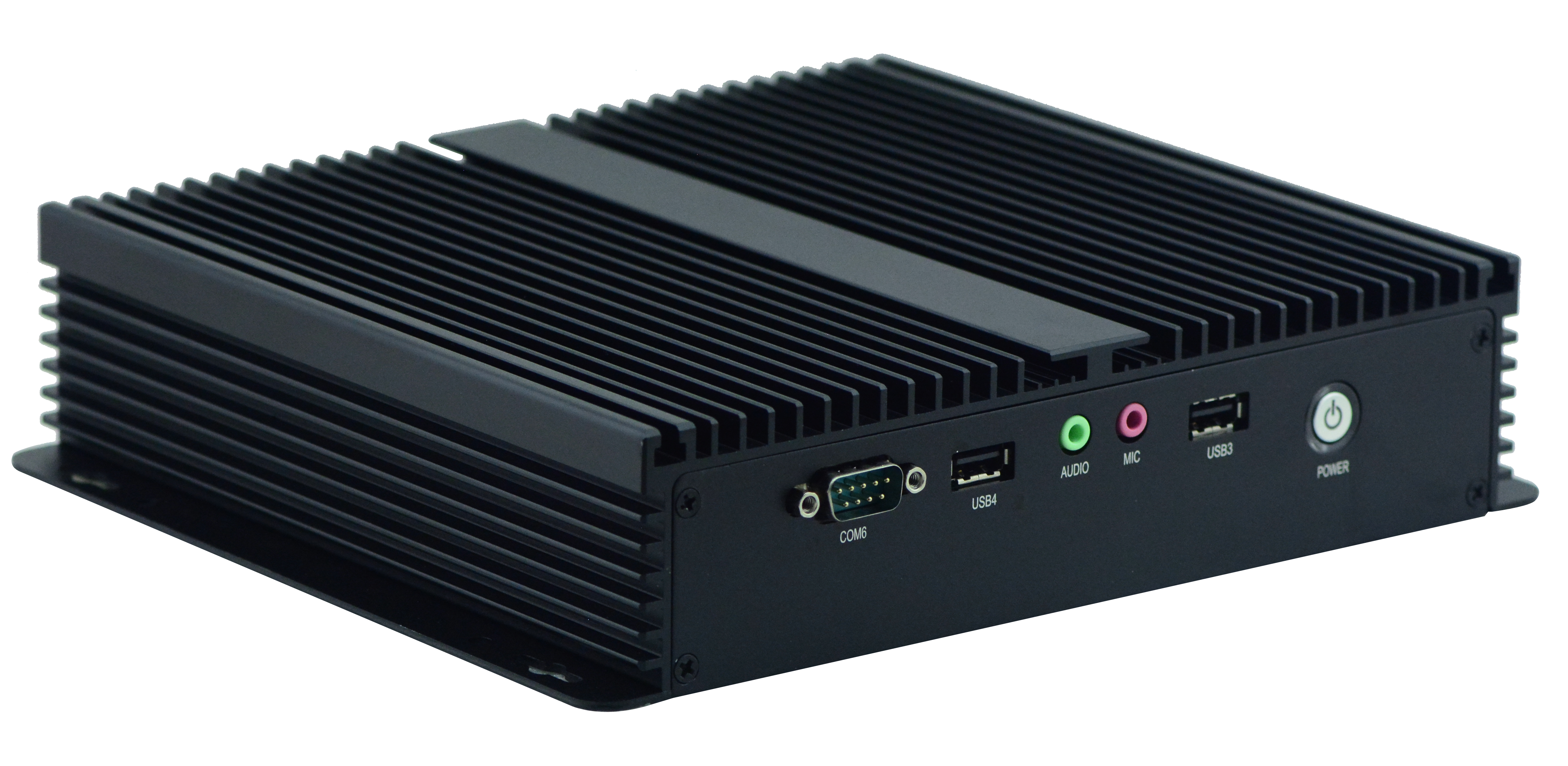

Fanless Industrial Computer powered by Core i5 4300U, 6 COM,

　　
Fanless heat sink structure
Full aluminum alloy chassis, compact structure, flexible installation
Adopt Intel® Haswell-U I5-4300U/1.9GHz dual core processor
1*Mini-PCIE slot, support WIFI, 3G module
2*WGI211AT Gigabit Ethernet port ,support Wake on Lan function
Rich I/O: 1xDC input, 6xCOM, 1xVGA, 1xHDMI, 2xLan, 2xAduio, 4xUSB
Specification:                            EPC-D465

Chassis Color Black
Dimension 235mm*200mm*52mm(L*W*H)
Structure Full aluminum fanless radiating structure
Material Full aluminum alloy
Intallation Desktop or embedded installation
Processor Integrated Intel® Haswell-U I5-4300U/1.9GHz dual core processor
Chipset Based on Intel® Haswell-U/Broadwell-U SOC platform
Graphics HD Graphics Integrated Intel® HD Graphics 4400, support DirectX 11.2/12, OpenGL4.3 support synchronous / asynchronous display.
Resolution 1*VGA, max support 1920x1200@60Hz
1*HDMI, max support 3200x2000@60Hz
Storage Memory 1* SODIMM support 1600/1333MHz DDR3L/1.35V memory, max up to 8GB
HDD Support 1*2.5 inch HDD expansion
CF N/A
SSD Support 1*MSATA SSD expansion
Audio Sound Card Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out
Network Ethernet 2*WGI211AT Gigabit Ethernet port, support Wake on Lan, PXE
WiFi 1*Mini-PCIE slot, support WiFi, 3G module
I/O port USB 2* USB2.0, 2*USB3.0
Power Switch 1* Power Switch
LAN 1* LAN (RTL8111E/F, Gigabit Ethernet)
Display 1* VGA, 1*HDMI display output
Serial Port 5* RS232 serial port, COM3 support RS485/422
Power In 1*12V DC IN Jack
Antenna 2*WIFI/3G SMA antenna (optional)
Audio 2*MIC, 2*Line-out
Power Adaptor Input AC 110V ~ 220V
Output DC 12V 5A
Reliability Operating Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operate System Support Win7/Win8/Win10/Linux OS

Ordering Information
No. Model Processor RAM Storage LAN COM USB WIFI Adaptor OS
1 EPC-D465 Core i5 4300U/1.90GHz / / 2 x Intel WGI211AT 6 4 N/A 12V/5A /
2 EPC-D469 J1900U/2.0GHz / / 2 x Realtek RTL8111E 6 4 N/A 12V/5A /
Packing List
1 Power cord 3P 180cm, China
2 60W/36W external adapter
3 Accessory screw bag
Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4    Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India

  • DocumentDocument

    1. V1:
    2. V2:
      • ' target='_blank'>Datasheet
      • ' target='_blank'>User Guide
      • ' target='_blank'>3G/4G USB Modem Compatibility List
      • ' target='_blank'>Quick Installation Guide

  • Image (High Resolution)

  • SoftwareSoftware

    1. V1:
      • ' target='_blank'>Firmware
    2. V2:
      • ' target='_blank'>Firmware
    How to find the hardware version?
    For example: V1.6 = V1
