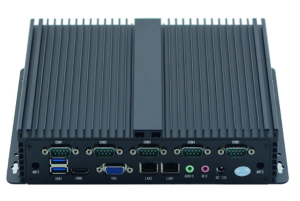

Fanless Wall Mount Industrial Mini PC with Intel Celeron J19

　　
Fanless heat sink structure
AIl aluminum alloy chassis, compact structure, flexible installation
Adopt Intel® Celeron J1900 2.0GHz quad core processor
1 x Mini-PCIE slot, support WIFI, 3G module
2 x WGI211AT Gigabit Ethernet port, support Wake on Lan function
Rich I/O: 1 x DC input, 6 x COM, 1 x VGA, 1 x HDMI, 2 x Lan, 2 x Aduio, 4 x USB
Specification:
Model No. EPC-D469Z
Chassis Color Black
Dimension 235mmx200mmx52mm (L x W x H)
Structure Full aluminum fanless radiating structure
Material Full aluminum alloy
Installation Desktop, embedded, wall mount installation
Motherboard Model M50_2L
Processor Integrated Intel® Celeron J1900 2.0GHz quad core processor
Chipset Based on Intel® SOC platform
Graphics HD Graphics Integrated Intel® HD Graphics, support DirectX 11.1, OpenGL 3.2, support synchronous/asynchronous display
Resolution 1 x VGA, max support 2560x1600@60Hz
1 x HDMI, max support 1920x1080@60Hz
Storage Memory 1 x SODIMM support 1600/1333MHz DDR3L/1.35V memory, max up to 8GB
HDD Support 1 x 2.5-inch HDD expansion
CF N/A
SSD Support 1 x MSATA SSD expansion
Audio Audio Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out
Network Ethernet 2 x WGI211AT Gigabit Ethernet port, support Wake on LAN, PXE
WiFi 1 x Mini-PCIE slot, support WiFi, 3G module
I/O port USB 2 x USB2.0, 2 x USB3.0
Power Switch 1 x Power Switch
LAN 1 x LAN (RTL8111E/F, Gigabit Ethernet)
Display 1 x VGA, 1 x HDMI display output
Serial Port 5 x RS232 serial port, COM3 support RS485/422
Power In 1 x 12V DC IN Jack
Antenna 2 x WIFI/3G SMA antenna (optional)
Audio 2 x MIC, 2 x Line-out
Power Adaptor Input AC 110V ~ 220V
Output DC 12V 5A
Reliability Operating Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operate System Support Windows 7, Windows 8, Windows XP, Linux OS
Ordering Information
No. Model Processor Memory Storage LAN COM USB WIFI Adaptor OS
1 EPC-D465Z 4300U/1.90GHz / / 2 x WGI211AT 6 4 N/A 12V/5A /
2 EPC-D469Z J1900U/2.0GHz / / 2 x RTL8111E 6 4 N/A 12V/5A /
Packing List
1 SATA data cable
2 Power cord 3P 180cm, China
3 Accessory screw bag
Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4        Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India
