Integrated Intel® Haswell-U I7-4510U dual-core four-thread p

　　
Fan cooling structure, all aluminum alloy material
Integrated Intel® Haswell-U I7-4510U dual-core four-thread processor, TDP 15W
Support 1 * HDMI display output and 1 * VGA display output
Support 2 * WGI211AT Gigabit network card, support Wake on LAN, PXE function
Support 1 * 6PIN Phoenix terminal, including audio, switch signal
Support 2 * RS232 serial interface
Support 4 * USB2.0 interface, 2 * USB3.0 interface

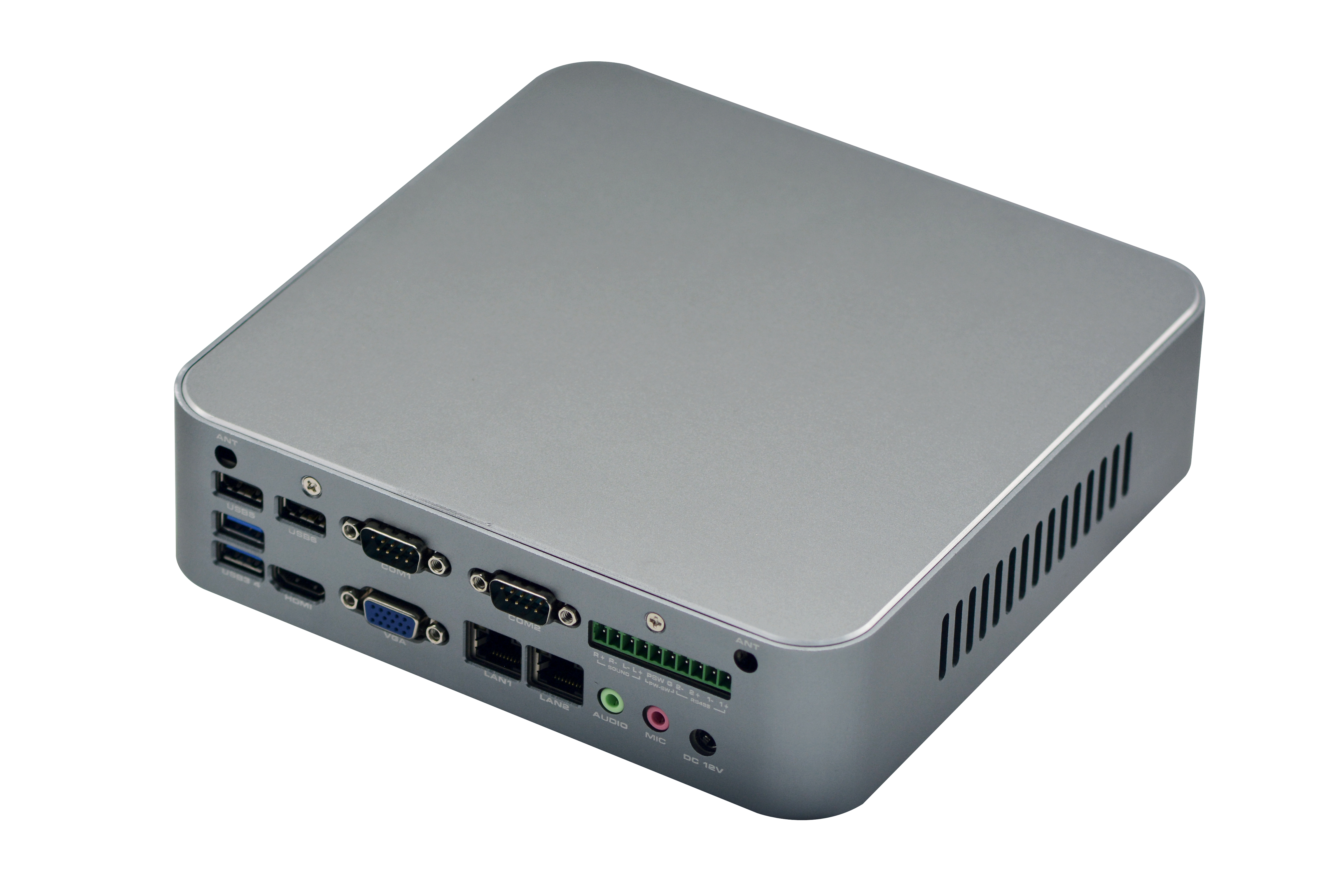

Specification:                    EPC-H46247
Model EPC-H46247
Chassis Color Iron Gray
Dimension 197*197*52mm（L*W*H）
Structure Full aluminum fanless structure
Processor CPU Integrated Intel® Haswell-U I7-4510U dual-core four-thread processor, TDP 15W
Graphics Graphics Integrated Intel® HD Graphics 6100
Memory Memory 1* SO DDRIII slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Storage SATA Support 1*2.5inch HDD
SSD Support 1*MSATA SSD
Rear I/O Audio 1* Line out (green), 1* MIC (red)
USB 2* USB2.0, 2*USB3.0
LAN 2* RJ45 Gigabit LAN Port
Antenna 2* WIFI/3G SMA antenna（optional）
Power 1* DC 12V input
Display 1*VGA, 1*HDMI
Phoenix terminal 1*6 PIN（include sound, switch, RS485 signal）
Serial Port 2*RS232 COM port
Front I/O Switch 1*Power switch
USB 2* USB2.0
LED 1*HDD LED, 1*Power LED
OS   Support Windows 7, Windows 8, Windows 10, Linux

Power Adaptor		 Input AC 110V~ 220V
Output DC 12V
Type External power adaptor
Reliability Installation Desktop
Working Temp. 0℃～45℃
Storage Temp. -20℃～70℃
Relative Humidity 5%-95% relative humidity, non-condensing
Working Vibration 0.5g rms/5-500HZ/random/operating
