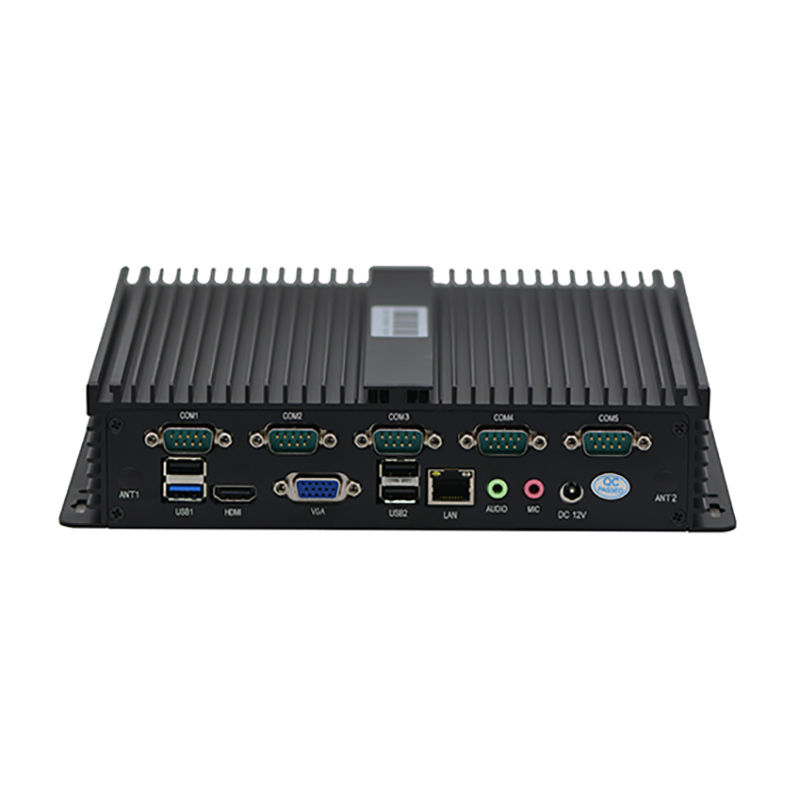

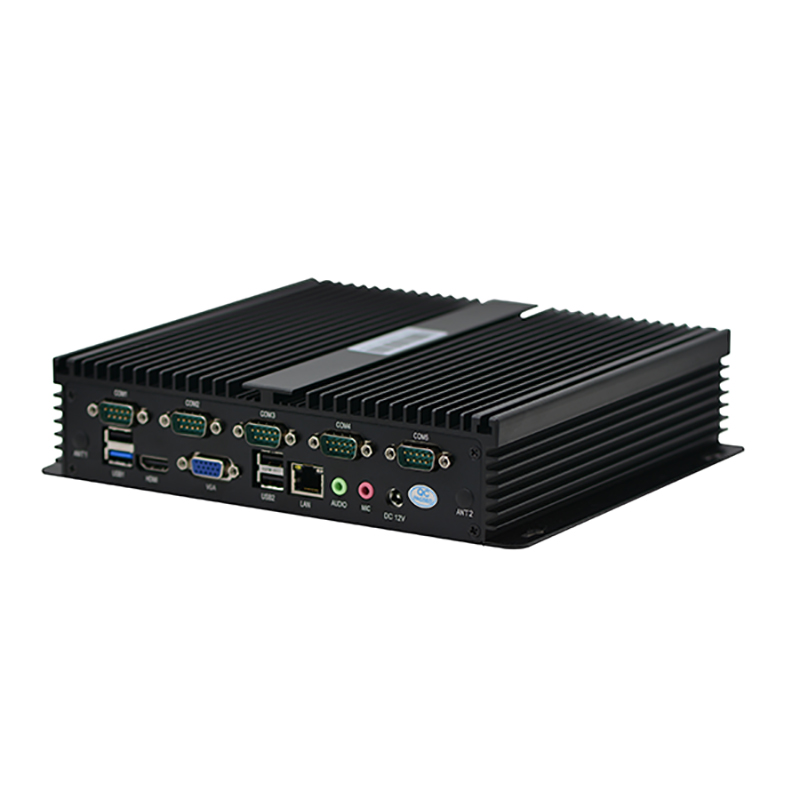

Fanless Mini desktop industrial computer with Intel Core I5-
Fanless heat sink structure,All aluminum alloy chassis
Intel®Core I5-3337U dual core four thread processor
1*HDMI High definition interface+1*VGA Interface independent dual display
1* Realtek RTL8111E Gigabit Ethernet port ,support Wake On LAN,PXE functionality
6* RS232 COM (COM2/3 support RS232/422/485, COM1~6 9pin supports live function)
5*USB2.0,1*USB3.0
Intel®Core I5-3337U dual core four thread processor
1*HDMI High definition interface+1*VGA Interface independent dual display
1* Realtek RTL8111E Gigabit Ethernet port ,support Wake On LAN,PXE functionality
6* RS232 COM (COM2/3 support RS232/422/485, COM1~6 9pin supports live function)
5*USB2.0,1*USB3.0
Specification: EPC-KD105
Ordering Information:
| Processor system | CPU | Integrated Intel®Core I5-3337U Dual core four thread processor |
| frequency |
1.8GHz~2.7GHz（MAX） 2.70 GHz |
|
| power | TDP 17W | |
| Chipset | Intel® NM70 express chipset | |
| BIOS | 32Mb Flash ROM | |
| Ram | Technology | DDR3L 1600/1333MHz |
| Max | 8GB | |
| Slot | 1*SODDR3 | |
| Display | Graphics | Intel® HD Graphics |
| Graphics engine | N/A | |
| HDMI | 1*HDMI，1920X1200@60HZ | |
| CRT |
1*VGA，2560X1600@60Hz |
|
| Display | 1*HDMI+1*VGA | |
| LAN | LAN1 | 1*Realtek RTL8111EGigabit Ethernet port ,support Wake On LAN,PXE functionality |
| LAN2 | N/A | |
|
Audio |
Port | 2*AUDIO, 2*MIC, onboard ALC662 6-channel Hi-Fi audio controller |
| I/O Port | Serial Port |
6 * RS232 serial port (COM2 / 3 support RS232 / 422/485, COM1 ~ 6 9pin support live function) 6* RS232 serial port(COM2/3 support RS232/422/485, COM1~6 9pin support live function) |
| USB | 5*USB2.0，1*USB3.0 | |
| SIM | N/A | |
| Phoenix Terminal | N/A | |
|
Extend |
Mini PCIE | 1* Mini PCIE,support WIFI, USB WIFI, 3G moduel |
| HDD | SATA | 1*2.5 inch HDD expansion |
| SSD | 1* MSATA SSD expansion,SSD tranfer speed max to 6Gbps | |
| OS | Microsoft Windows | Windows 7, Windows10，64bit |
| Linux | Ubuntu | |
| Power | Power supply | External power adapter |
| Input | DC 12V | |
| output | AC TO DC, 36W / 60W (ontional) | |
| Chassis | Structure | Full aluminum fanless radiating structure |
| Intallation | Desktop or mounted installation | |
| Dimension (L*W * H) | 235mm*200mm*52mm | |
| Reliability | Operating Temp. | -10℃～60℃ |
| Storage Temp. | -20℃～70℃ | |
| Relative Humidity | 5%-95% Relative humidity, no condensation | |
| Vibration | 0.5g rms/5-500HZ/random/operating |
Ordering Information:
| No. | Model | Processor | Memory | HDD | GPIO | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | SIM | power-input |
| 1 | IPC-KD509 | J1900/2.0GHz | N/A | N/A | N/A | 1 | 6 | 1 | 1 | 5 | 1 | N/A | DC 12V |
| 2 | EPC-KD105 | 3337U/1.80GHz | N/A | N/A | N/A | 1 | 6 | 1 | 1 | 5 | 1 | N/A | DC 12V |
-
