Intel Celeron J1900 Desktop 4x GbE RJ45 Ports NCC-BT41S
Integrated Intel Celeron J1900 quad core processor(2.0GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35v memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V GbE network
1 x 12V-19V DC_JACK in
Nano ITX Form Factor(120mm x 120mm), fanless motherboard design
Extremely mini
Thank you for choosing the NCC-BT41S. The system is powered by the newest Intel Celeron J1900/J1800 Processors, codenamed Bay Trail, with the Intel SoC Series Chipset. It supports up to 8GB of DDR3L system memory at 1600MHz on single-channel DIMM banks. The NCC-BT41S is equipped with advanced I/O capacity which includes an RJ-45 console port, one mini PCIe slot (PCIe Generation 2.0), 1 Serial-ATA ports (comply with SATA Standard 2.0), a mini SATA slot.
Integrated Intel Celeron J1900 quad core processor(2.0GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35v memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V GbE network
1 x 12V-19V DC_JACK in
Nano ITX Form Factor(120mm x 120mm), fanless motherboard design
Extremely mini
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35v memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V GbE network
1 x 12V-19V DC_JACK in
Nano ITX Form Factor(120mm x 120mm), fanless motherboard design
Extremely mini
| Model No. | NCC-BT41S | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Celeron J1900 2.0GHz Quad Core |
| CPU Socket | Onboard | |
| Chipset | Baytrail SOC platform | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3L 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204pin SODIMM | |

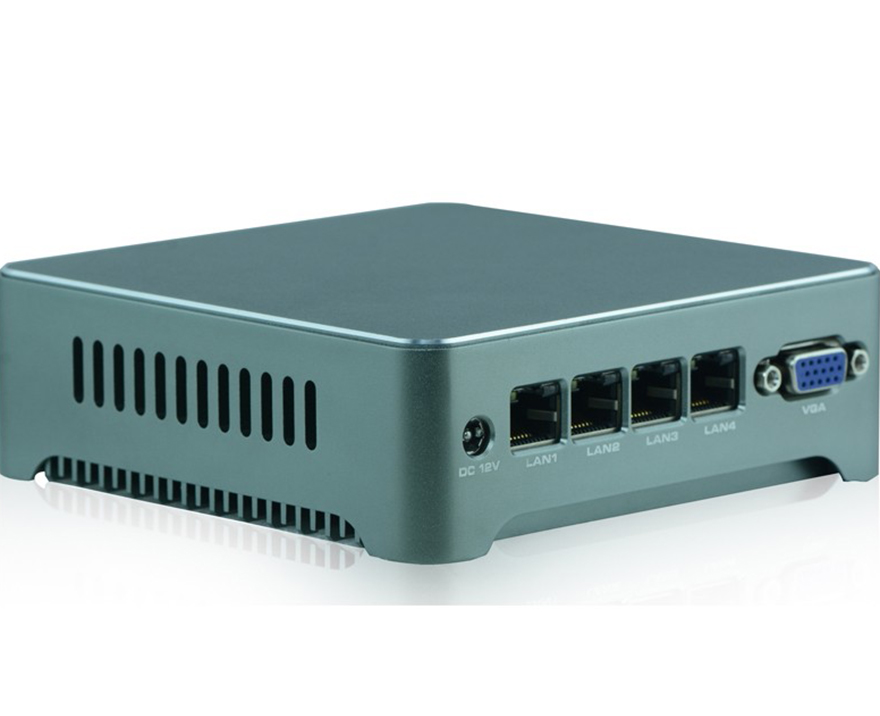

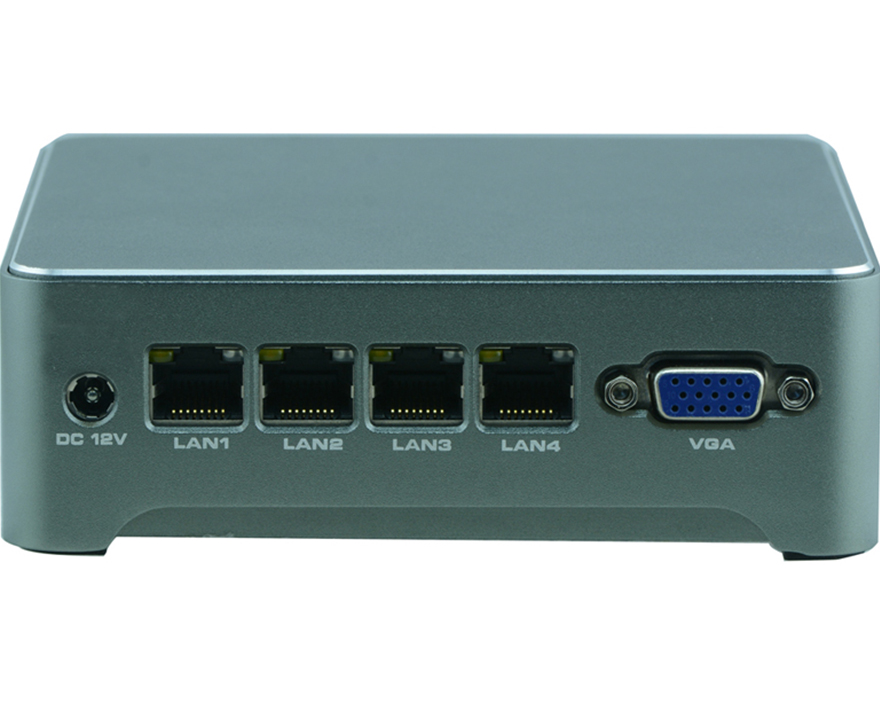

| Networking | Ethernet Ports | 4x GbE RJ45 Intel 82583V |
| Bypass | - | |

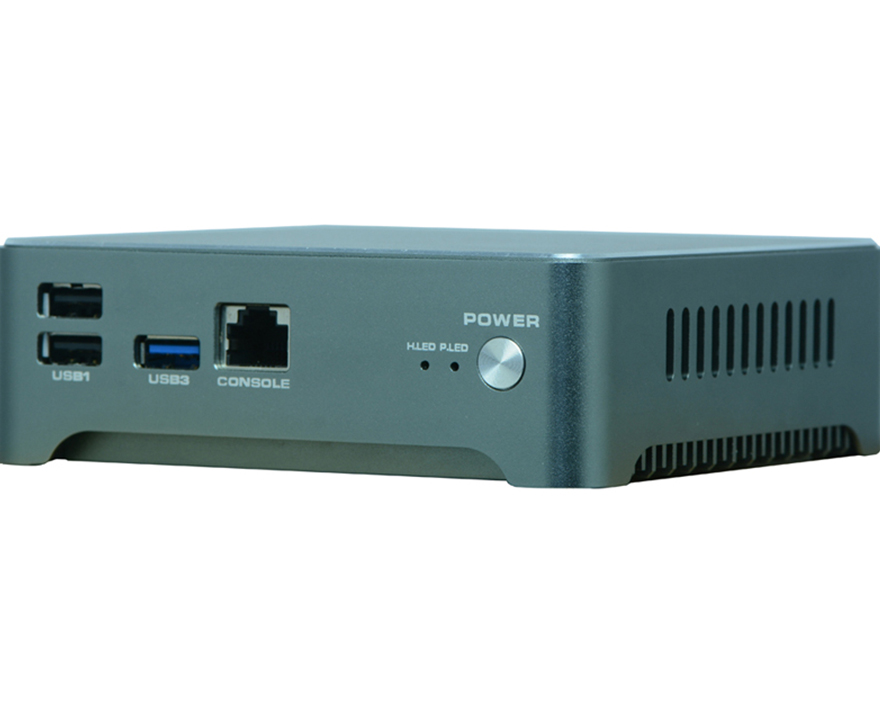

| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| 1x USB 3.0 | ||
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | 1x DC Jack | |
| Storage | HDD/SSD Support | - |
| Onboard Storage | 1x m-SATA | |
| Expansion | PCIe | - |
| Mini-PCIe | Optional | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | Passive CPU heatsink |
| System | - | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 128x41x128mm |
| Weight | 1.2kg | |
| Package Dimensions | (WxHxD) | 190x70x190mm |
| Weight | 1.6 kg | |
| Power | Type/Watts | 36W Desktop Adapter |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
| Approvals and Compliance | CE, FCC Class B | |
-
