Desktop Network Appliance with Intel Celeron J1900/1800 Proc
Intel® Celeron J1900 (Codenamed Bay Trail)
6x GbE RJ45, 1x RJ45 Console Port
Max. 8GB DDR3L 1600/1333MHz UDIMM
1x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2x USB 2.0, 1x VGA

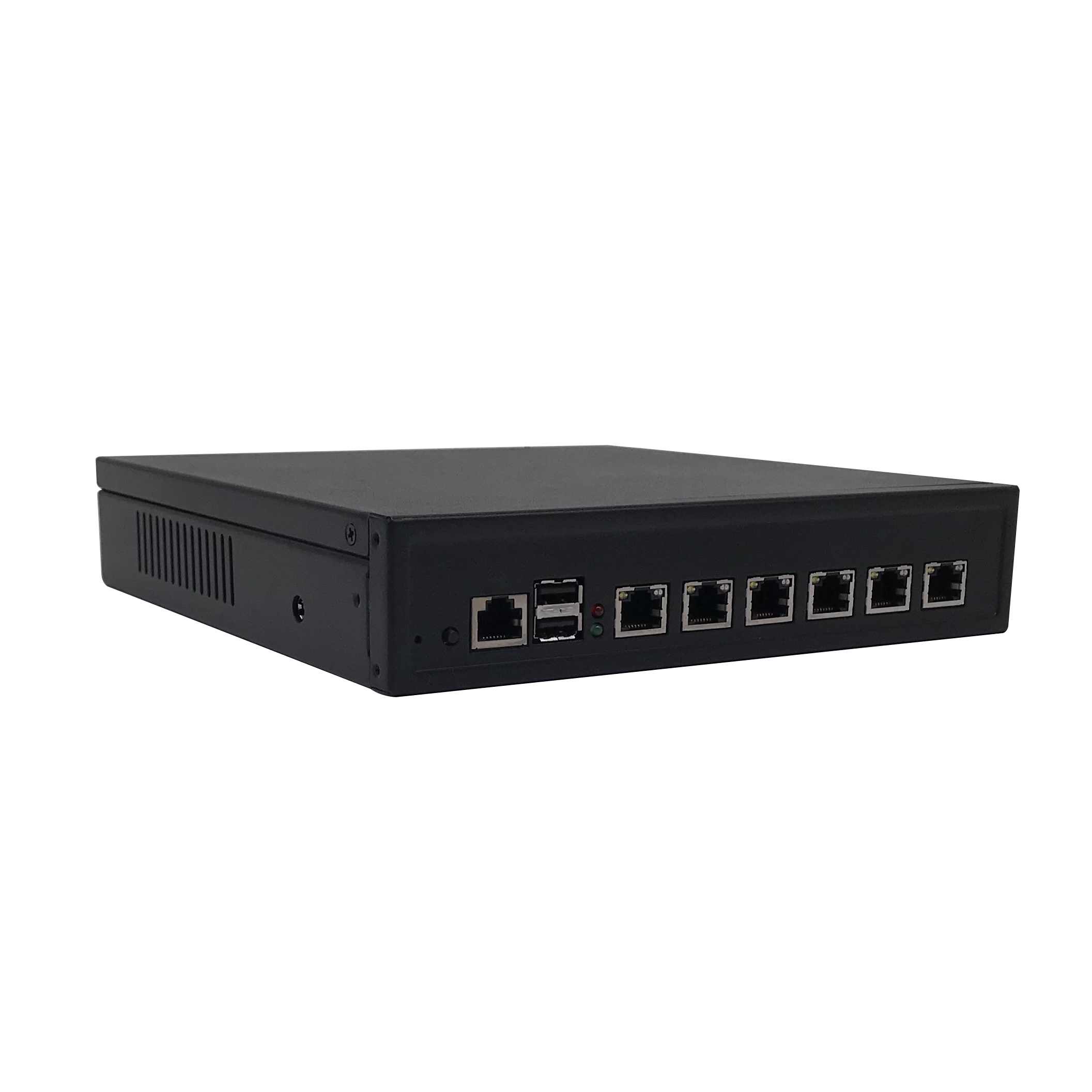

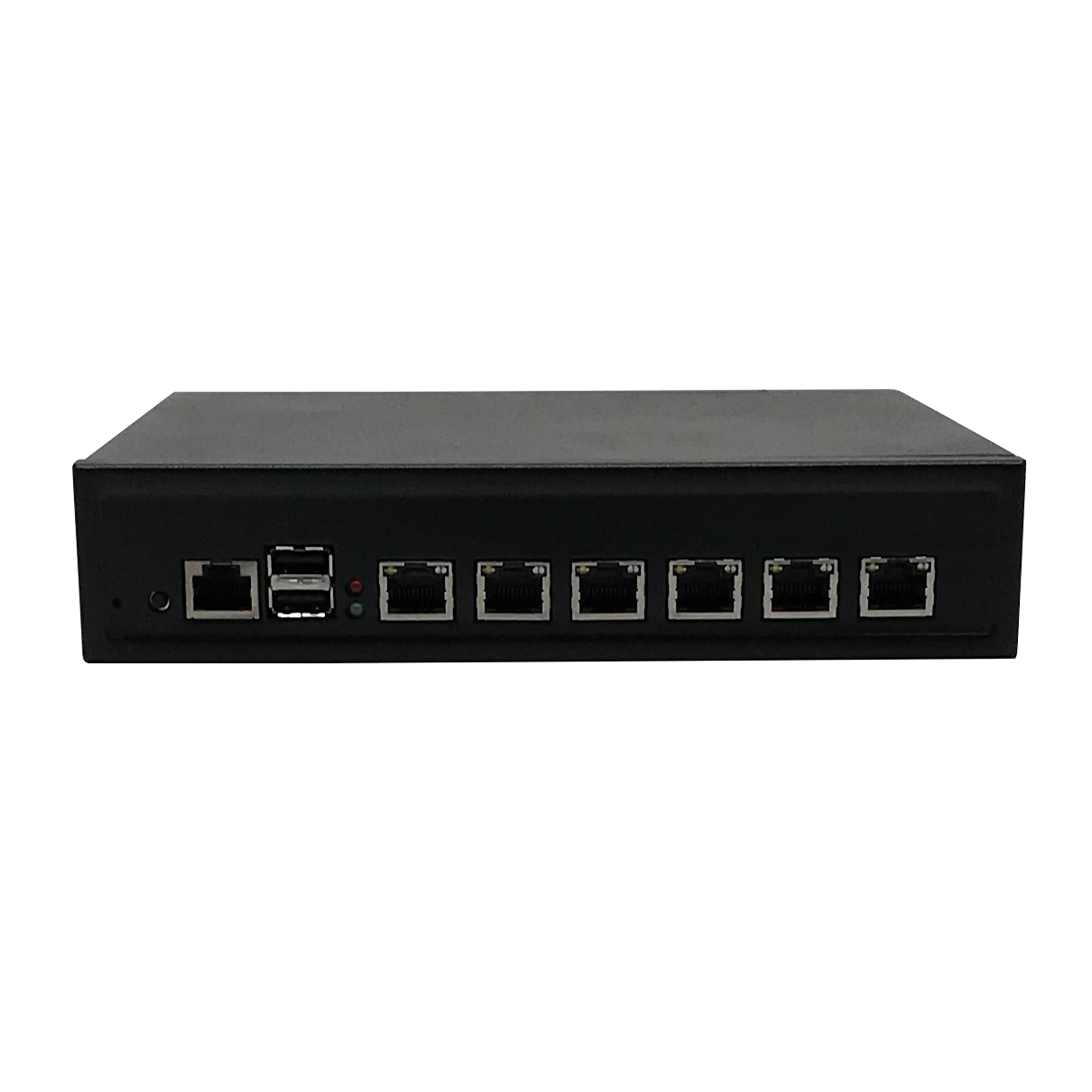

The NC-6010, powered by the Celeron J1900 (Codenamed Bay Trail)processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.
Intel® Celeron J1900 (Codenamed Bay Trail)
6x GbE RJ45, 1x RJ45 Console Port
Max. 8GB DDR3L 1600/1333MHz UDIMM
1x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2x USB 2.0, 1x VGA
6x GbE RJ45, 1x RJ45 Console Port
Max. 8GB DDR3L 1600/1333MHz UDIMM
1x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2x USB 2.0, 1x VGA
| Model No. | NC-6010 | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Celeron J1900/J1800 |
| CPU Socket | Onboard | |
| Chipset | SoC | |
| OS Support | Linux, Ubuntu, CentOS, pfSense, Windows 7 or above | |
| BIOS | AMI BIOS | |
| System Memory | Technology | DDR3L 1600/1333 MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204pin SODIMM | |
| Networking | Ethernet Ports | Intel Ethernet Controller WGI211ATL, Gigabit Ethernet x 6 |
| Bypass | Optional | |
| Storage | HDD/SSD Support | 1 x 2.5 inch HDD bays |
| CF/SD | - | |
| mSATA | 1x m-SATA | |
| I/O Interface | Reset Button | Reset Button x 1(alternative to Power button) |
| LED |
Power LED x 1, HDD Active x 1, LAN LED x 8(Optoinal Status LED x 1) |
|
| Power Button | Power Button x 1(alternative to reset button) | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | 60W, 12V DC-in power connector | |
| Expansion | PCIe | - |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU Heat Sink |
| System | 1x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing | |
| System Dimensions | (WxHxD) | 210x43.9x214mm |
| Weight | 4.5 kg | |
| Package Dimensions | (WxHxD) | 230x50x234mm |
| Weight | 5.47kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC, RoHS | |
-
