Desktop Network Appliance powered by Quad Core ARM Cortex-A5
Feature:
Integrated Rockchip RK3328 Quad Core ARM Cortex-A55 1.5GHz processor
Onboard 4GB DDR4 RAM
Onboard 32GB eMMC
Supports HDMI display
Provides 1 x RS232, 1 x Console, 2 x USB 2.0
Supports 4 x GbE ethernet
Supports 1 x Mini PCIe(supports LTE module), 1 x SIM(Standard Nano SIM slot)
DC 5V input, Ultra low power consumption less than 6W
Fanless Design
The NC-334R is an ARM based desktop network appliance that’s intended for entry level SD-WAN and network security devices with low cost.
Specification: NC-334R
Ordering Information
Packing List
Optional Accessories
| Model No. | NC-334R |
| Processor | Rockchip RK3328 Quad Core ARM Cortex-A55 up to 1.5GHz |
| RAM | Onboard DDR4 4GB, optional 2GB |
| Storage | Onboard 32GB eMMC |
| GPU | ARM latest high end graphic processor ARM Mali-450 MP2 Quad Core GPU |
| Ethernet | 4 x 10/100/1000Mbps RJ45 ports via Realtek RTL8367VB-VB-CG |
| Internal I/O | 1 x GPIO header |
| 1 x RS232 header | |
| 1 x USB header | |
| 1 x Mini PCIe slot(Supports 4G module) | |

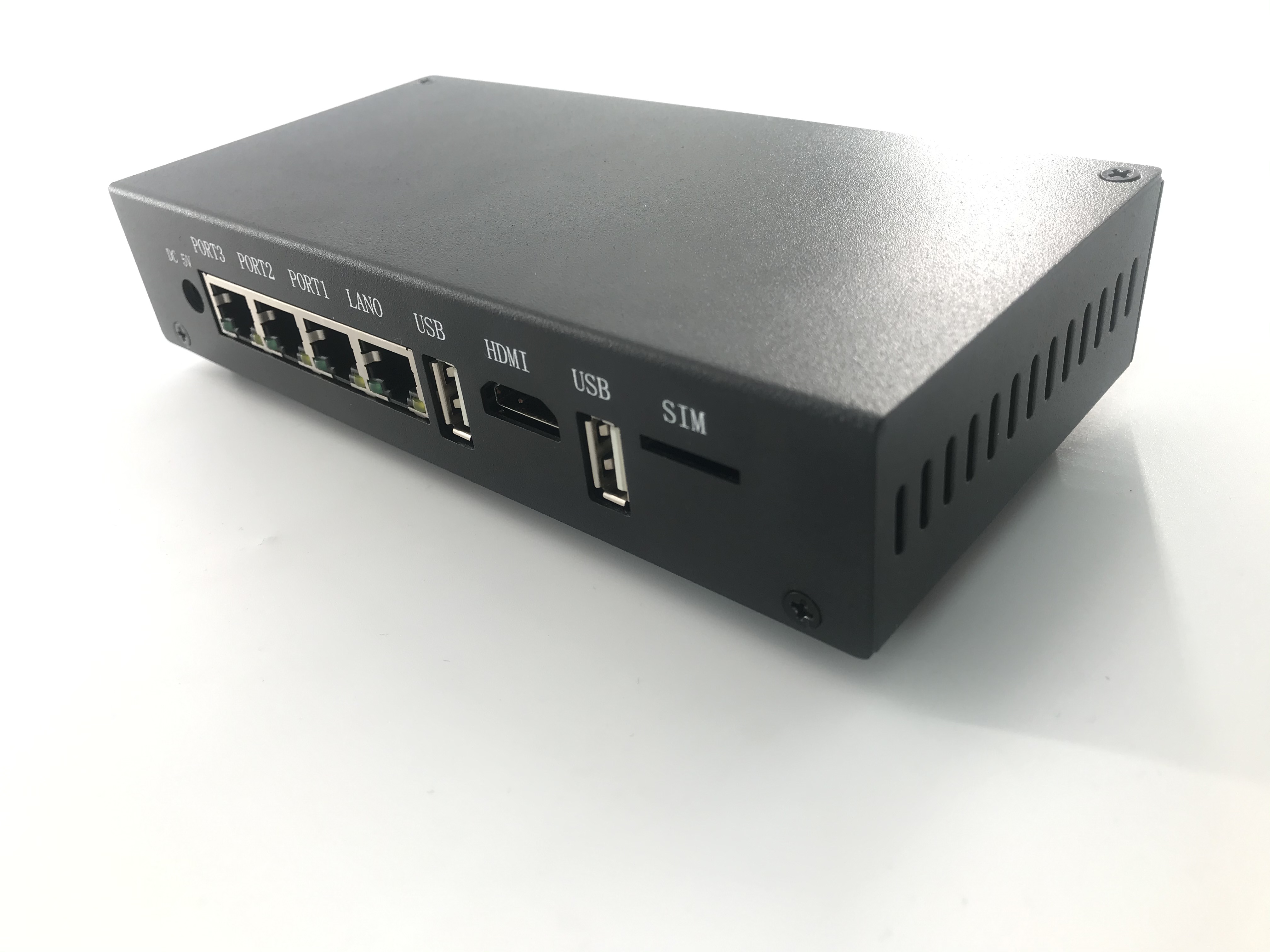

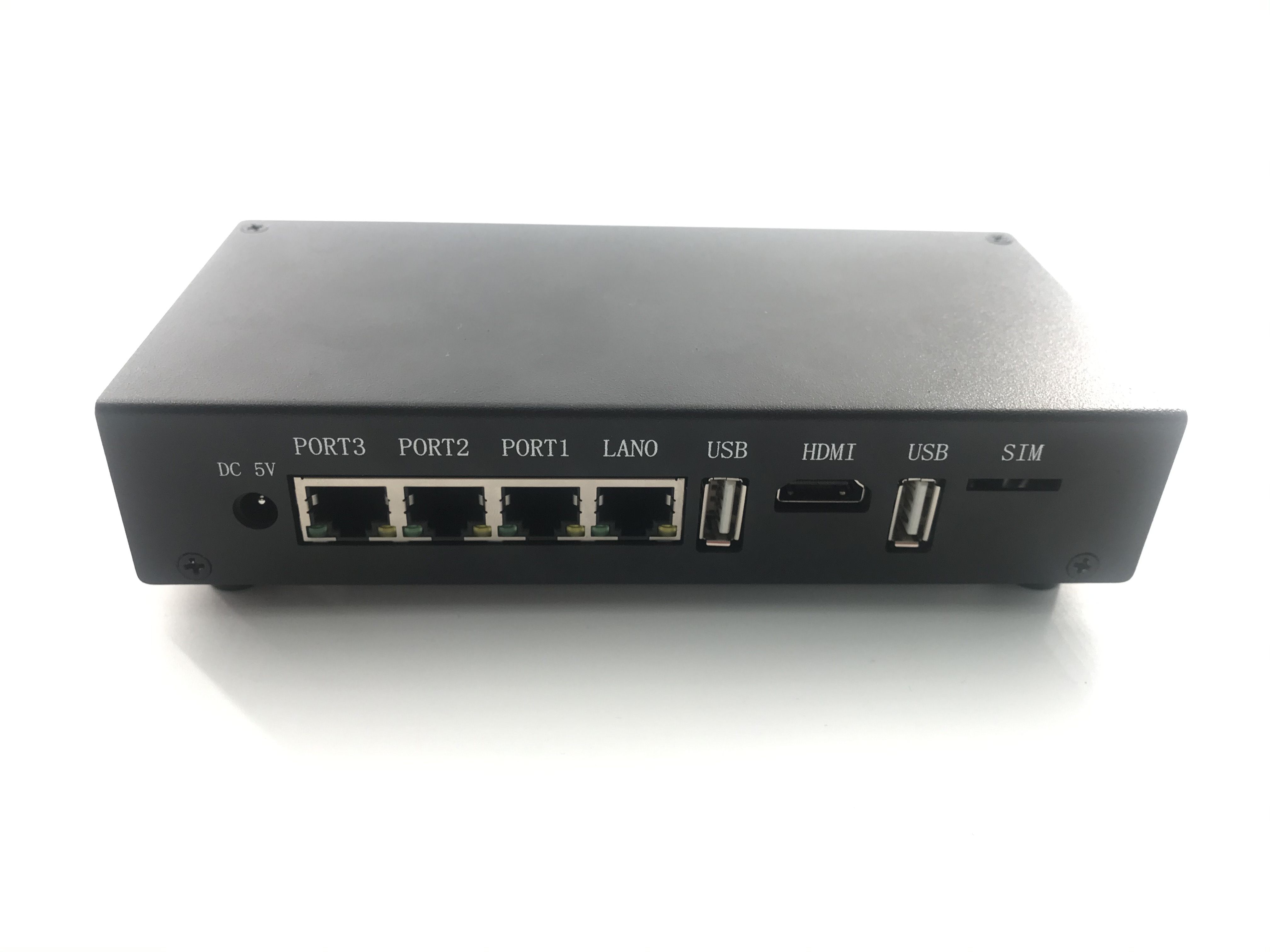

| External I/O | 1 x external SIM slot |
| 1 x HDMI port | |
| 4 x RJ45 ports | |

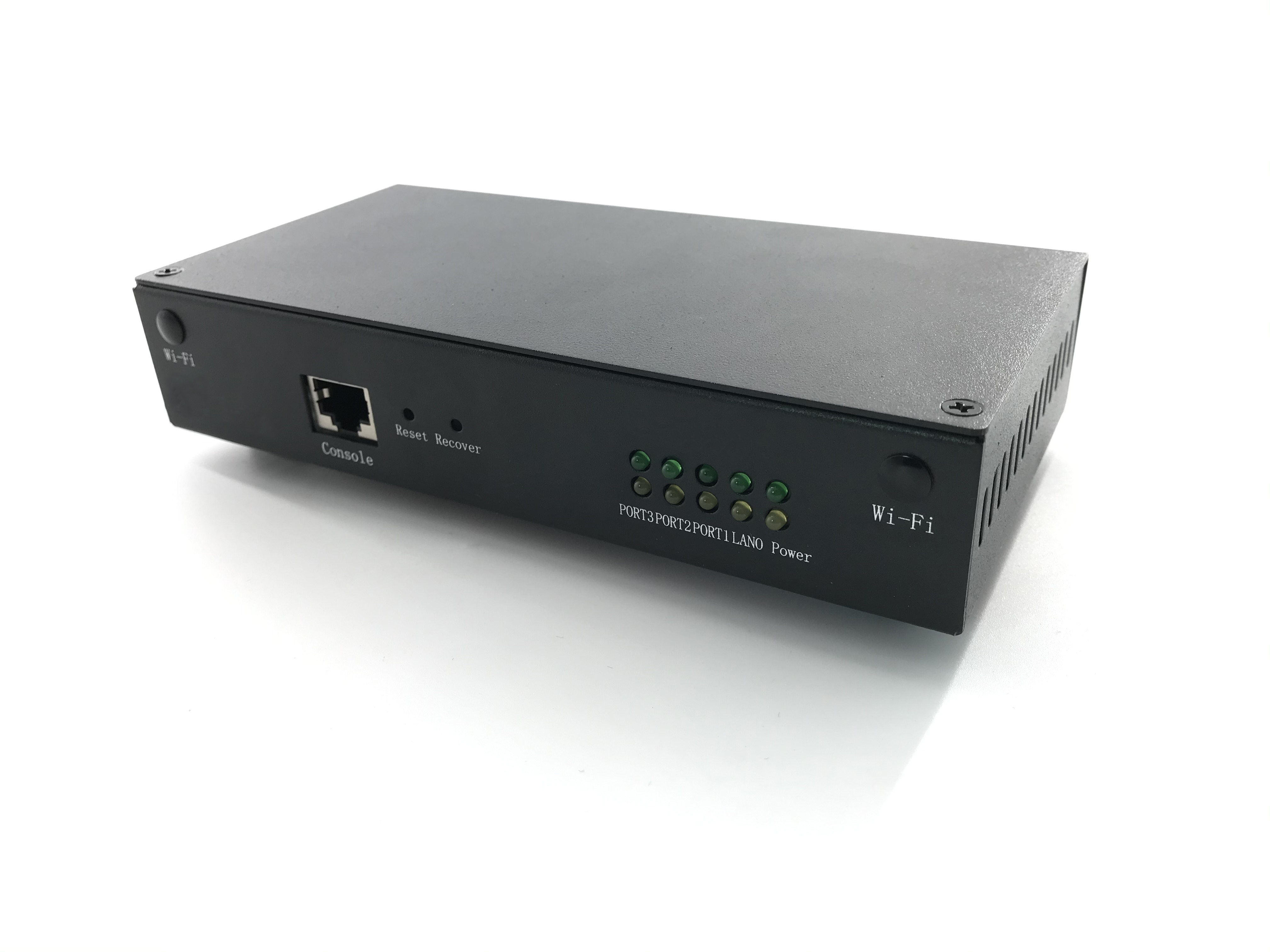

| 4 x LAN LED, 1 x Power LED 1 x HDD LED | |
| 1 x Power Button | |
| 1 x Recover Button | |
| 1 x RJ45 Console port | |
| 1 x USB2.0 port(Type A) | |
| 1 x USB OTG | |
| OS | Linux, Ubuntu |
| Temperature |
Working Temp: 0℃～45℃ Storage Temp: -40℃～85℃ |
| Humidity | 5%-95% Related Humidty, non condensing |
| Chassis | SGCC metal chassis |
| Dimension | 174(L)*86(W)*35(H)mm |
| Weight | 0.6KG |
| Power Adapter | +5V DC Power Adapter |
Ordering Information
| Part number | CPU | Memory | HDMI | LAN | SFP | USB | Console | BYPASS | Power |
| NC-334RA | Rockchip RK3328 | 4GB DDR4 | 1 | 4 x RJ45 | N/A | 2 | 1 | N/A | DC 5V 2A |
| NC-334RB | Rockchip RK3328 | 2GB DDR4 | 1 | 4 x RJ45 | N/A | 2 | 1 | N/A | DC 5V 2A |
Packing List
| 1 | 1 x Power Adapter |
Optional Accessories
| 1 | Power Adapter, USA |
| 2 | Power Adapter, Europe |
| 3 | Power Adapter, UK |
| 4 | Power Adapter, Japan |
| 5 | Power Adapter, India |
-
