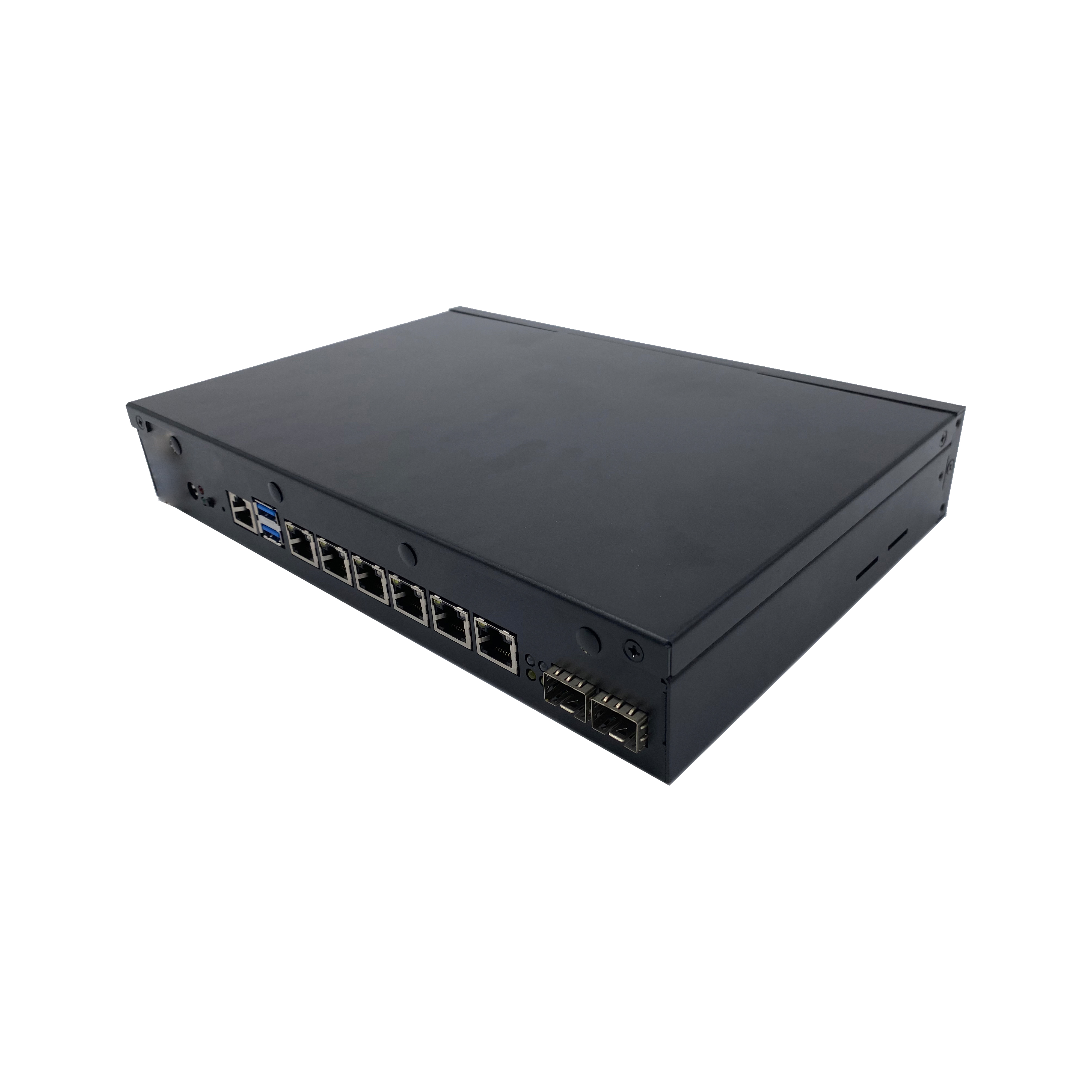

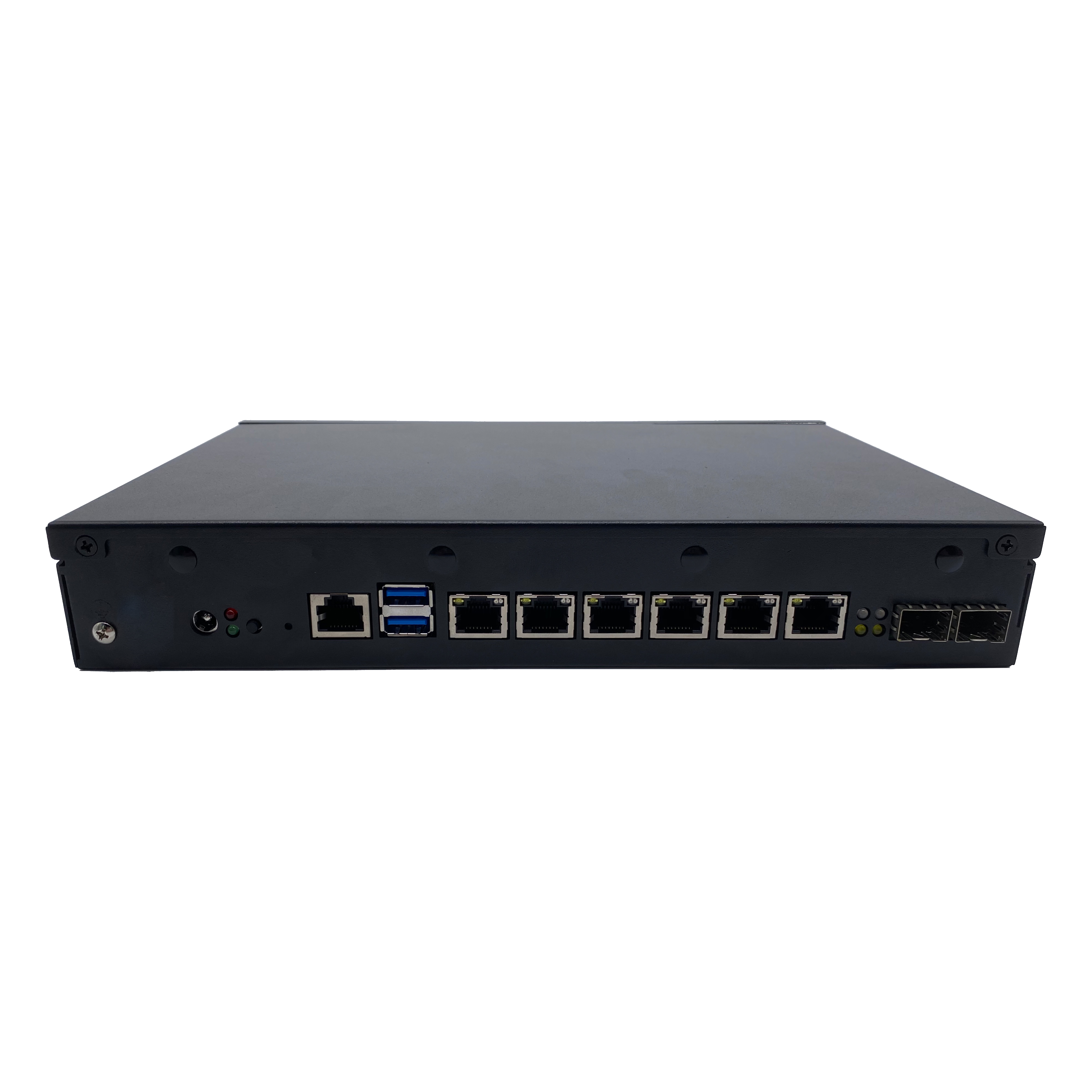

Desktop Network Appliance with Intel Denverton Atom C3558 Qu
The NC-C362, powered by the Intel Denverton Atom C3558 Quad Core/C3338 Dual Core processor, is a desktop form factor network appliance designed for entry-level network security, gateway, vCPE or SD-WAN.
Intel® Denverton Atom C3558 2.2GHz Quad Core / C3338 2.2GHz Dual Core processor
Supports 6 x GbE LAN and 2 x GbE SFP
Supports Max. 32GB DDR4 RAM, 2 x SODIMM
1 x MSATA and 1 x 2.5” HDD bay
1 x Console management port, 1 x TPM header
1 x Mini PCIe for Wi-Fi/3G/4G module, 1 x M.2 for 4G/5G module
2 x External SIM slots
2 x USB 3.0
Front LAN LED, Power LED and HDD LED.
Mini Desktop Form Factor
Supports 6 x GbE LAN and 2 x GbE SFP
Supports Max. 32GB DDR4 RAM, 2 x SODIMM
1 x MSATA and 1 x 2.5” HDD bay
1 x Console management port, 1 x TPM header
1 x Mini PCIe for Wi-Fi/3G/4G module, 1 x M.2 for 4G/5G module
2 x External SIM slots
2 x USB 3.0
Front LAN LED, Power LED and HDD LED.
Mini Desktop Form Factor
Specification: NC-C362
System Dimension:
Ordering Information
Packing List
Optional Accessories
| Model No. | NC-C362 | |
| Form Factor | Desktop | |
| Platform | Processor Options |
Intel Denverton Atom C3558 Quad Core 2.2GHz Or Atom C3338 Dual Core 1.5GHz(Base), 2.2GHz(Turbo) |
| CPU Socket | FCBGA1310 | |
| Chipset | SoC | |
| OS Support | Linux, Ubuntu, CentOS, pfSense, Windows 7 or above | |
| BIOS | AMI BIOS | |
| System Memory | Technology | DDR4 2133MHz |
| Max. Capacity | 32GB | |
| Socket | 2 x 260pin SODIMM | |
| Networking | Ethernet Ports |
6 x GbE RJ45 ports(LAN 1-4 integrated by CPU, LAN 5-6 via Intel i210-AT) 2 x GbE SFP port(via Intel i210-IS) |
| Bypass | N/A | |
| Storage | HDD/SSD Support | 1 x 2.5” HDD bays |
| CF/eMMC | Embedded 16GB eMMC flash | |
| mSATA | 1x m-SATA | |
| I/O Interface | Reset Button | - |
| LED |
Power LED x 1(Rear) HDD Active x 1(Rear) Power LED x 1(Front) HDD Active x 1(Front) LAN LED x 10(Front) |
|
| Power Button | 1 x Power Button | |
| Console | 1 x RJ45 console | |
| USB | 2 x USB 3.0 | |
| Reset Button | 1 x Reset Button | |
| Display | N/A, but can extend VGA/DVI/HDMI with a discrete mini PCIe graphic card. | |
| Power Input | 60W, 12V DC-in power connector | |
| Expansion | PCIe | - |
| Mini-PCIe | 1 x Mini PCIe(Supports 3G/4G and Wi-Fi module) | |
| M.2 | 1 x M.2(Supports 4G/5G module) | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | 1 x TPM header | |
| Cooling | Processor | 1 x CPU fan |
| System | 1x cooling fan | |
| Environmental Parameters | Temperature | -10℃～60℃(Working)/ -20℃～70℃(Storage) |
| Humidity | 5 ~ 90% non condensing | |
| System Dimensions | (WxHxD) | 270x43.9x184.6mm |
| Weight | 1.5 kg | |
| Package Dimensions | (WxHxD) | 328x80x230mm |
| Weight | 2.3 kg | |
| Power | Type/Watts | 60W Desktop Adapter |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC, RoHS | |

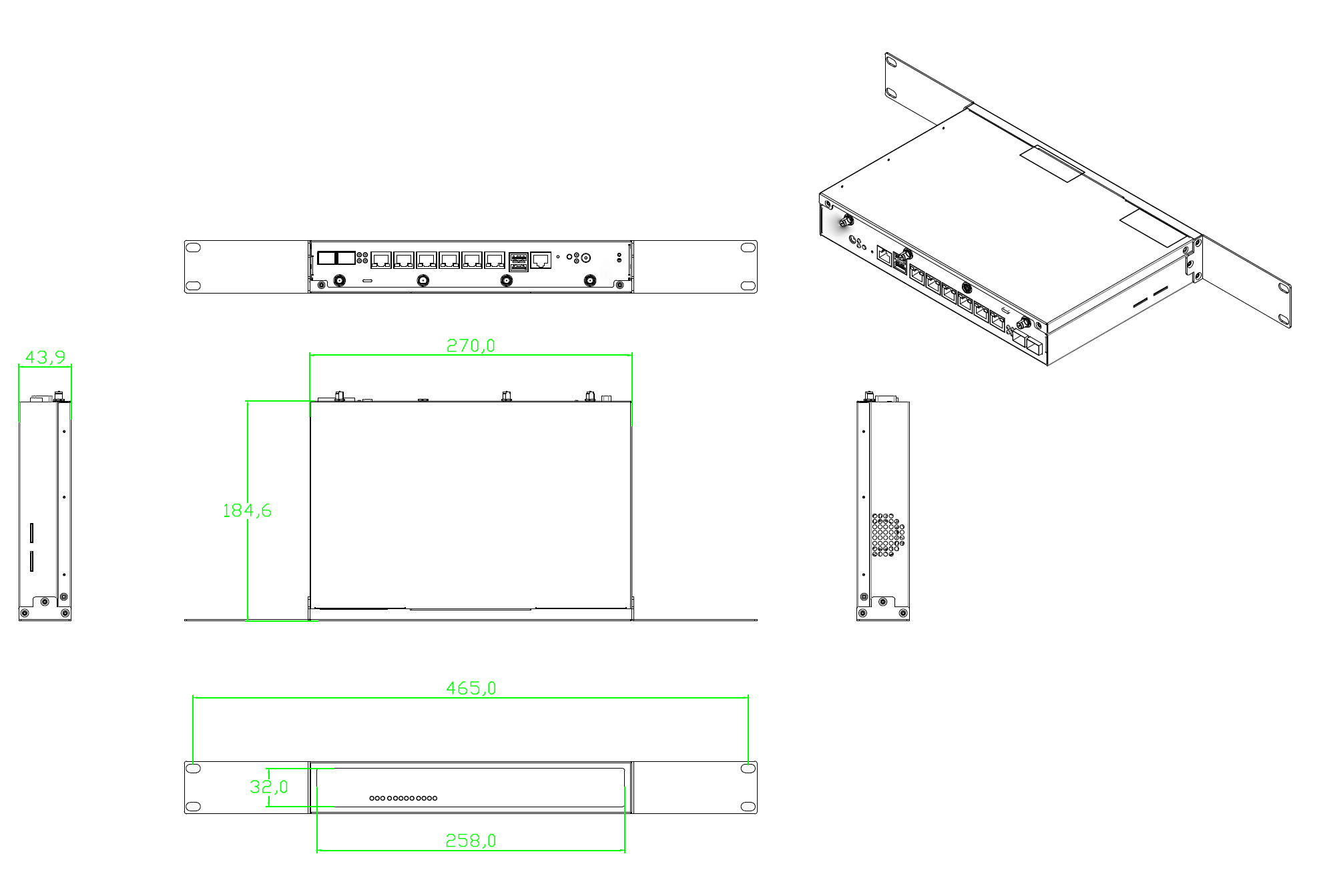

System Dimension:
Ordering Information| Part number | SoC | DDR4 | 1Gb LAN port | GbE SFP | Console | USB 3.0 | 2.5'' HDD | Mini PCIe | M.2 | Power |
| NC-C362A | Intel Atom C3558 | 2 | 6 | 2 | 1 | 2 | 1 | 1 | 1 | 60W Desktop Adaptor |
| NC-C362B | Intel Atom C3338 | 2 | 6 | 2 | 1 | 2 | 1 | 1 | 1 | 60W Desktop Adaptor |
| 1 | 2 x Rackmount ear(Optional) |
| 2 | 1 x Desktop adapter |
| 3 | 1 x Screw bag |
| 4 | 1 x Power cord |
| 5 | 1 x SATA power cable |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
