Compact Desktop Network Appliance with 7th Gen Kaby Lake 386
Feature:
Intel® 7th Gen Kaby Lake Celeron 3865U, Core i3 7100U, Core i5 7200U, Core i7 7500U / 6th Gen Skylake Celeron 3855U, Core i3 6100U, Core i5 6200U, Core i7 6500U processor

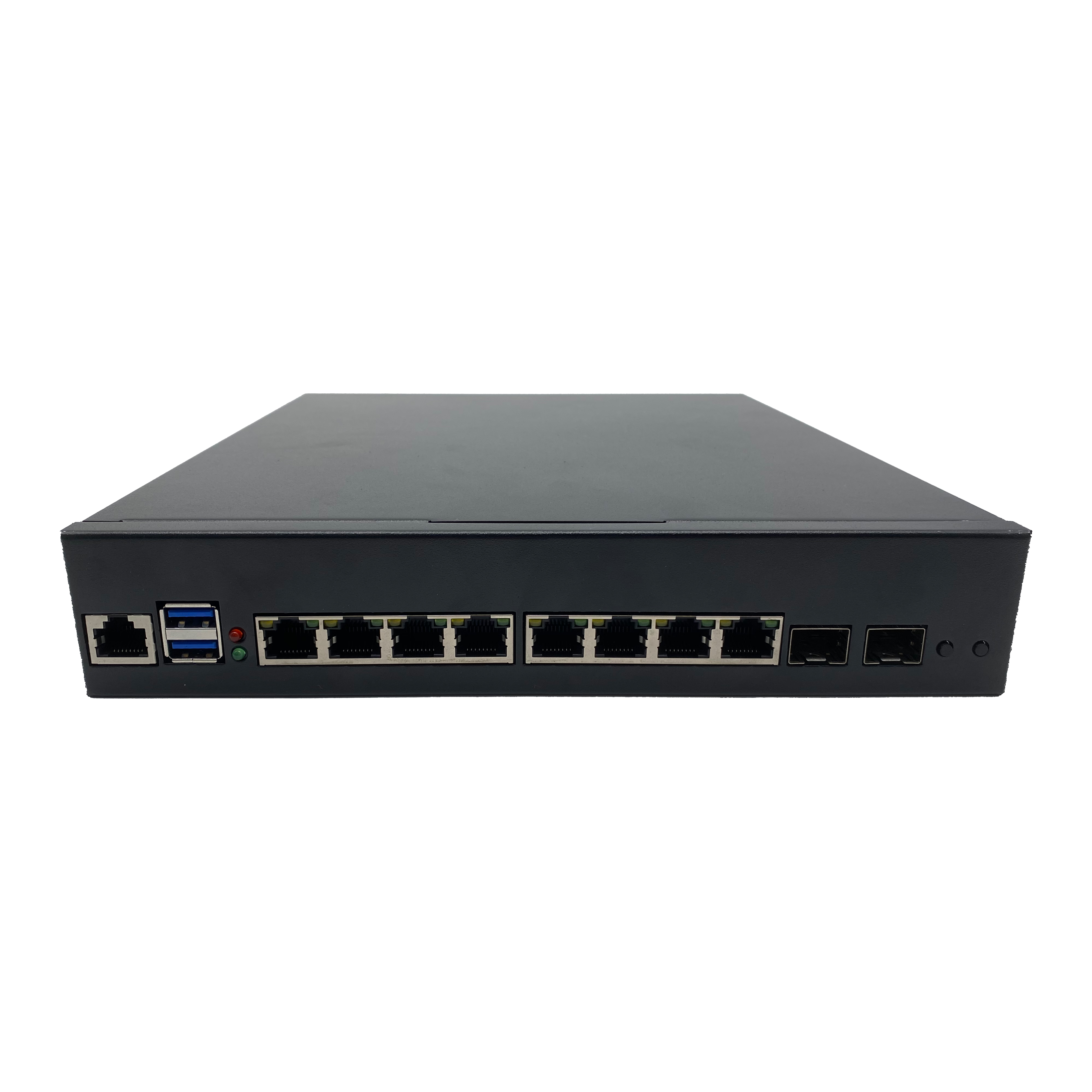

8 x GbE RJ45, 2 x GbE SFP(Optional), 1 x RJ45 Console Port
Max. 16GB DDR4 2133MHz SO-DIMM
1 x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor

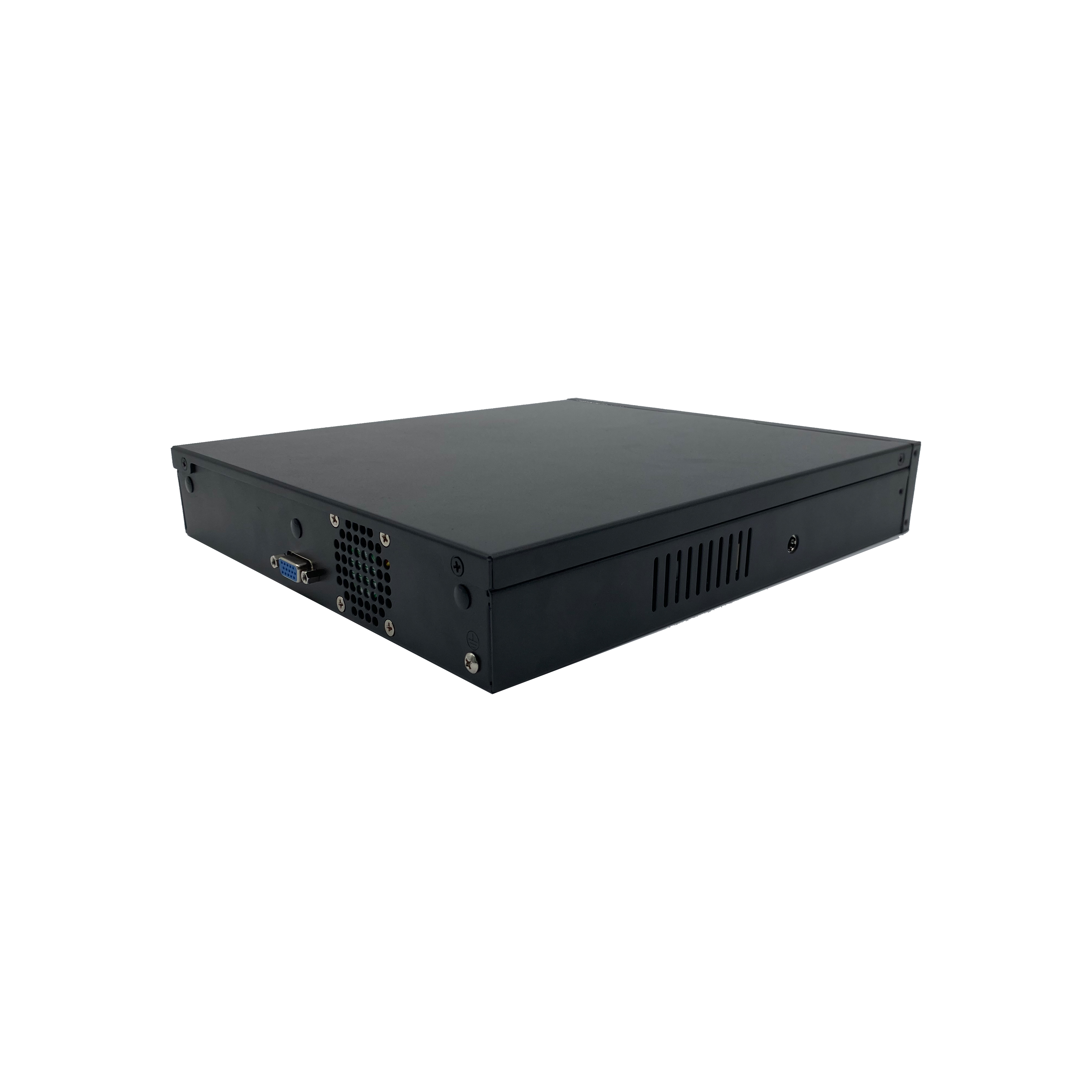

2 x USB 3.0 port, 1 x VGA port
Intel® 7th Gen Kaby Lake Celeron 3865U, Core i3 7100U, Core i5 7200U, Core i7 7500U / 6th Gen Skylake Celeron 3855U, Core i3 6100U, Core i5 6200U, Core i7 6500U processor
8 x GbE RJ45, 2 x GbE SFP(Optional), 1 x RJ45 Console Port
Max. 16GB DDR4 2133MHz SO-DIMM
1 x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2 x USB 3.0 port, 1 x VGA port
NC-8210
Compact Desktop Network Appliance with 7th Gen Kaby Lake 3865U, Core i3 7100U, Core i5 7200U, Core i7 7500U/ 6th generation Skylake Celeron 3855U, Core i3 6100U, Core i5 6200U, Core i7 6500U processor 8 LAN, 2 SFP
Overview:
The NC-8210, powered by the 6th/7th Gen Ultra low power consumption processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.
Specification: NC-8210
Ordering Information
Packing List
Optional Accessories
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
Compact Desktop Network Appliance with 7th Gen Kaby Lake 3865U, Core i3 7100U, Core i5 7200U, Core i7 7500U/ 6th generation Skylake Celeron 3855U, Core i3 6100U, Core i5 6200U, Core i7 6500U processor 8 LAN, 2 SFP
Overview:
The NC-8210, powered by the 6th/7th Gen Ultra low power consumption processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.
Specification: NC-8210
| Model No. | NC-8210 | |
| Form Factor | Desktop | |
| Platform | Processor Options | Support Intel® 7th Gen Kaby Lake Celeron 3865U, Core i3 7100U, Core i5 7200U, Core i7 7500U / 6th Gen Skylake Celeron 3855U, Core i3 6100U, Core i5 6200U, Core i7 6500U processor |
| CPU Socket | BGA1365 | |
| Chipset | SoC | |
| Security Acceleration | N/A | |
| BIOS | AMI 64Mb Flash ROM | |
| System Memory | Technology | DDR4 2133MHz |
| Max. Capacity | 16GB | |
| Socket | 1 x SODIMM Slot | |
| Networking | Ethernet Ports |
8 x Intel WG-i211 10/100/1000， 2 x Intel Ethernet Controller I350-AM2 |
| Bypass | - | |
| I/O Interface | Reset Button | 1 x Reset Button |
| LED | Power/Storage | |
| Power Button | 1 x Power Button | |
| Console | 1 x RJ45 | |
| USB | 2 x USB3.0 | |
| LCD Module | - | |
| Display | 1 x VGA | |
| Power Input | Desktop Adapter | |
| Storage | HDD/SSD Support | 1 x 2.5HDD/SSD |
| Onboard Storage |
1 x m-SATA 1 x M.2 2280(Optional 2242), SATA signal only. |
|
| Expansion | PCIe | - |
| Mini-PCIe | Yes, Supporting Wi-Fi/LTE/Bluetooh | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 1 x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/-20℃～70℃ |
| Humidity | 0-95% (relative humidity; non-condensing) | |
| System Dimensions | (W x H x D) | |
| Weight | ||
| Package Dimensions | (W x H x D) | |
| Weight | ||
| Power | Type/Watts | - |
| Input | - | |
| Approvals and Compliance | CE, FCC Class B | |
| Part number | PCH | DDR4 | 1Gb LAN port | SFP | Console | USB 3.0 | 2.5'' HDD | Mini PCIe Expansion | Power |
| NC-8210 | SoC | 1 | 8 x Intel WG-i211 | Intel i350 2 x GbE | 1 | 2 | 1 | 1 | AC 60W adapter |
| 1 | 2 x Rackmount ear |
| 2 | 1 x SATA signal cable |
| 3 | 1 x Screw bag |
| 4 | 1 x Power cord |
| 5 | 1 x SATA power cable |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
