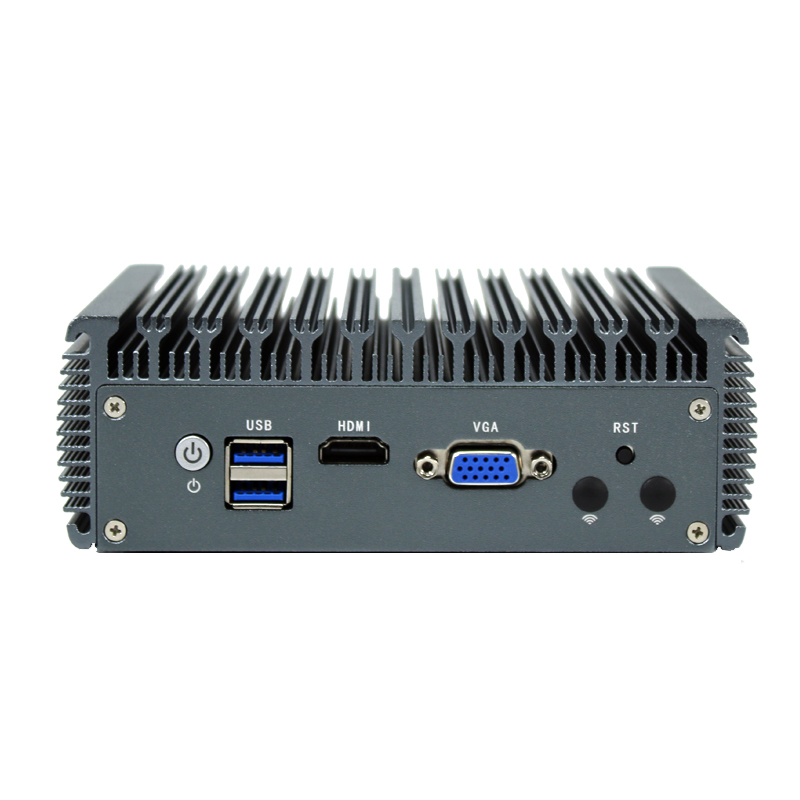

Desktop Network Appliance with Intel Celeron J3455 Processor
Desktop Network Appliance with Intel Celeron J3455 Processors, 4 LAN, m-SATA slot
Intel Celeron J3455. Quad-core four threads. Main frequency 1.5GHz (22nm. Power consumption 10W)
4 x Intel@ i211AT Gigabit LAN Port
Support 1 x DDR3 SODIMM memory/low voltage 1.35V PC3L (max 8GB)
1 x MSATA slot
Integrated Intel HD Graphics (core graphics card)
Mini Desktop Form Factor,High-quality all-aluminum alloy shell (no fan, silent and stable)
1 x USB 2.0 port,1 x USB 3.0 port
1 x VGA port, 1 x HDMI port
1 x DC 12V input interface
4 x Intel@ i211AT Gigabit LAN Port
Support 1 x DDR3 SODIMM memory/low voltage 1.35V PC3L (max 8GB)
1 x MSATA slot
Integrated Intel HD Graphics (core graphics card)
Mini Desktop Form Factor,High-quality all-aluminum alloy shell (no fan, silent and stable)
1 x USB 2.0 port,1 x USB 3.0 port
1 x VGA port, 1 x HDMI port
1 x DC 12V input interface
Specification: NCF-3455
Ordering Information
Packing List
Optional Accessories
| Model No. | NCF-3455 | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Celeron J3455. Quad-core four threads. Main frequency 1.5GHz (22nm. Power consumption 10W) |
| CPU Socket | Onboard | |
| CPU cache | 2MB cache | |
| OS Support | PVE/Love fast/LEDE/ROS/WIN7/8/10 | |
| BIOS | AMI BIOS | |
| System Memory | Technology | DDR3L 1600/1333 MHz |
| Max. Capacity | 8GB | |
| Socket | 1 x 204pin SODIMM | |
| Networking | Ethernet Ports | 4 x Intel@ i211AT Gigabit LAN |
| Bypass | Optional | |
| Storage | HDD/SSD Support | 1 x 2.5 inch HDD bays |
| CF/SD | - | |
| mSATA | 1 x m-SATA | |
| I/O Interface | Reset Button | - |
| LED |
Power LED x 1, HDD Active x 1, LAN LED x 8(Optoinal Status LED x 1) |
|
| Power Button | 1 x Power Button | |
| Console | - | |
| USB | 1 x USB 2.0, 1 x USB 3.0 | |
| LCD Module | - | |
| Display | 1 x VGA,1 x HDMI | |
| Power Input | 40W, 12V DC-in power connector | |
| Expansion | PCIe | - |
| Mini-PCIe | - | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU Heat Sink |
| System | - | |
| Environmental Parameters | Temperature | -10℃～60℃ |
| Humidity | 0% ~ 90% non condensing | |
| System Dimensions | (WxHxD) | 134x40.6x126mm |
| Weight | 0.68 kg | |
| Package Dimensions | (WxHxD) | - |
| Weight | - | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC, RoHS | |
| Part number | PCH | DDR3 | 1Gb LAN port | Bypass | USB 2.0 | USB 3.0 | 2.5'' HDD | Power |
| NCF-3455 | Onboard | 1 | 4 x Intel@ i211AT | - | 1 | 1 | 1 | AC 60W single |
| 1 | 1 x SATA signal cable |
| 2 | 1 x Screw bag |
| 3 | 1 x Power cord |
| 5 | 1 x SATA power cable |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
