Desktop Network Appliance with Intel Celeron J3455 Processor
The NC-AP4M, powered by the Celeron J3455 processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.
Intel Celeron J3455 Quad Core Quad Threads, Turbo 2.3GHz
1 x SODIMM DDR3L 1600MHz 1.35V memory, Max. 8GB
1 x MSATA slot(USB / SATA signal, supporting USB Wi-Fi / LTE / SSD)
1 x Mini PCIe slot (USB / PCIe, PCIe signal and LAN3 colay, supporting Wi-Fi / LTE)
1 x PCIe slot (PCIe x1, signal and LAN4 colay)
2 x SIM slots supporting dual LTE
4 x Intel i225 2.5GbE network, optional 2 pairs of Bypass

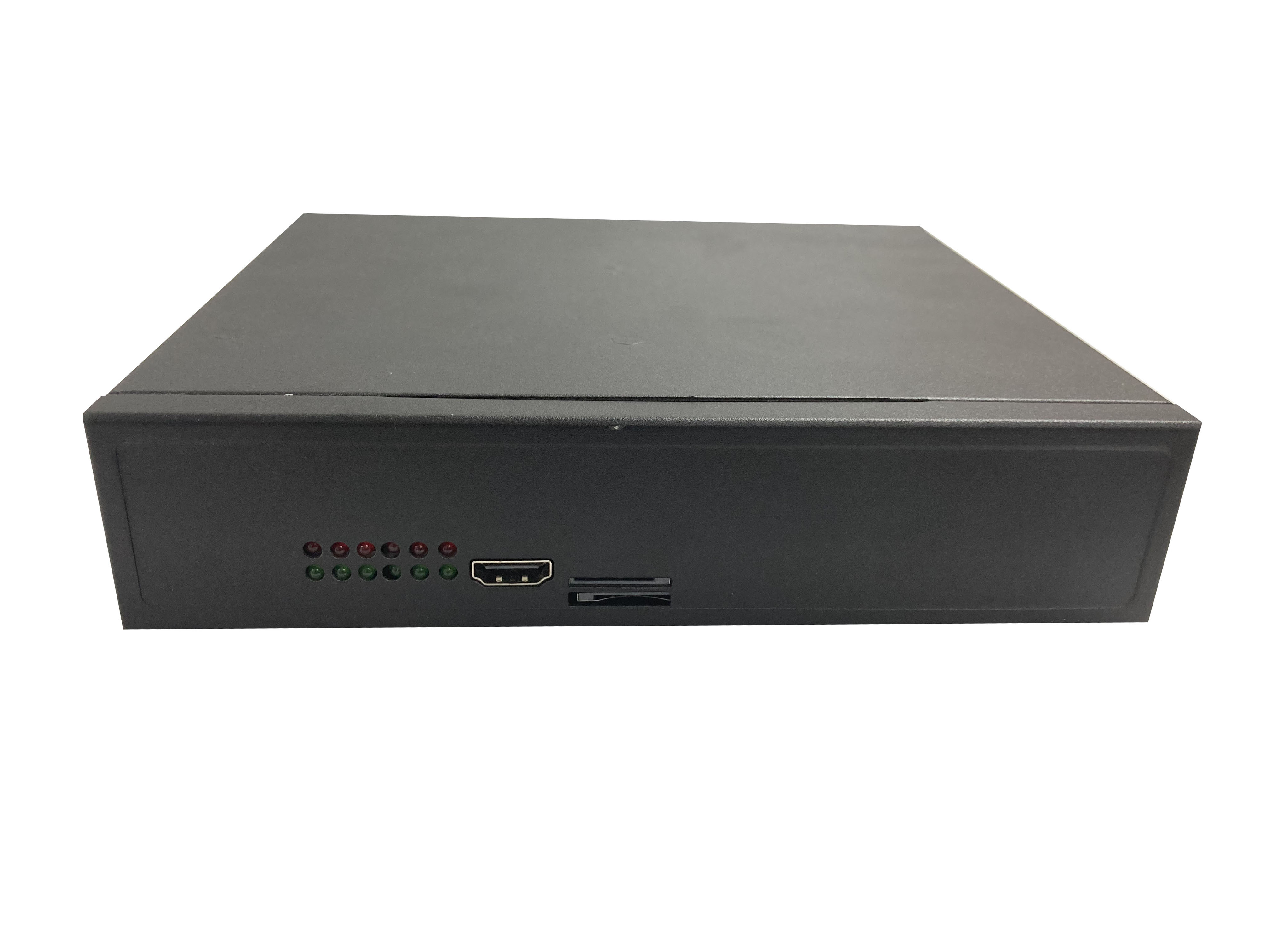

2 x USB 3.0, 1 x HDMI
Mini Desktop Form Factor
1 x SODIMM DDR3L 1600MHz 1.35V memory, Max. 8GB
1 x MSATA slot(USB / SATA signal, supporting USB Wi-Fi / LTE / SSD)
1 x Mini PCIe slot (USB / PCIe, PCIe signal and LAN3 colay, supporting Wi-Fi / LTE)
1 x PCIe slot (PCIe x1, signal and LAN4 colay)
2 x SIM slots supporting dual LTE
4 x Intel i225 2.5GbE network, optional 2 pairs of Bypass
2 x USB 3.0, 1 x HDMI
Mini Desktop Form Factor
| Model No. | NC-AP4M | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Celeron J3455 processor |
| CPU Socket | Onboard | |
| Chipset | SoC | |
| OS Support | Windows all, Linux | |
| BIOS | AMI UEFI BIOS | |
| System Memory | Technology | DDR3L 1600 MHz |
| Max. Capacity | 8GB | |
| Socket | 1 x 204pin SODIMM | |
| Networking | Ethernet Ports | Intel Ethernet Controller i225, 2.5 GbE x 4 |
| Bypass | 2 Pair (Optional) | |
| Storage | HDD/SSD Support | 1 x 2.5” HDD bay |
| CF/SD | - | |
| mSATA | 1 x MSATA | |

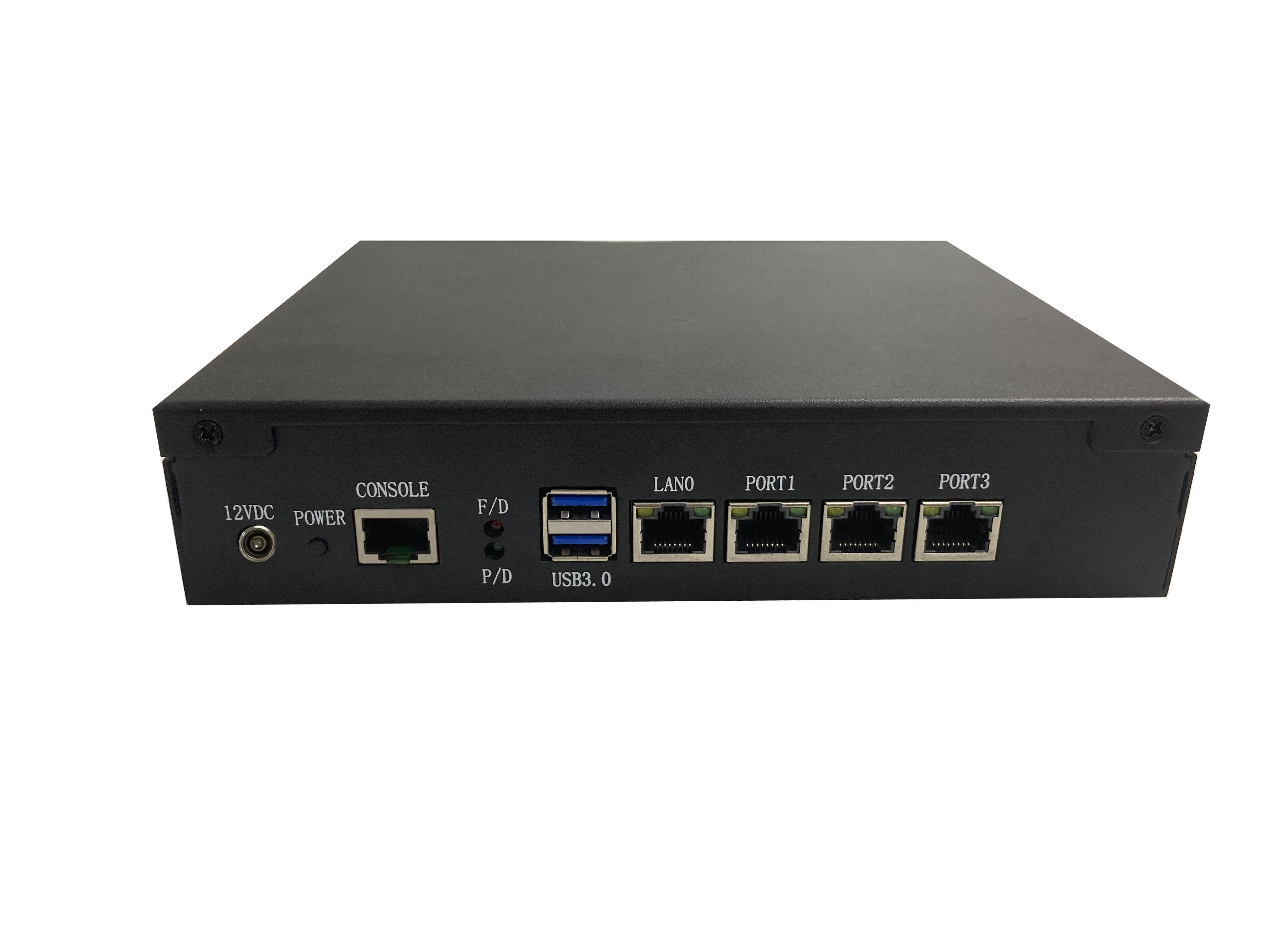

| I/O Interface | Power Button | 1 x Power button |
| LAN port | 4 x RJ45 port | |
| Console | 1 x RJ45 console | |
| USB | 2 x USB 3.0 | |
| SIM | 2 x SIM slot, insert SIM cards from outside of chassis | |
| LED |
Power LED x 1, HDD Active x 1, LAN LED x 8(Optional Status LED x 1), 1 x LTE/5G LED,1 x Wi-Fi LED |
|
| Power Input | 40W, 12V DC-in power connector | |
| Expansion | PCIe | 1 x PCIe slot (Colayed PCIe signal with LAN) |
| Mini-PCIe | 2 x Mini-PCIe, both support USB signal, one of them colayed PCIe lane with LAN 3 | |
| Miscellaneous | Watchdog | 256 level |
| Internal RTC with Li Battery | Yes | |
| TPM | 1 x TPM header | |
| MTBF | 90630 | |
| Cooling | Processor | CPU Heat Sink |
| System | 1x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing | |
| System Dimensions | (WxHxD) | 205x45x175mm |
| Weight | 1.2kg | |
| Package Dimensions | (WxHxD) | 270x125x240mm |
| Weight | 2.1kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC, RoHS | |
-
