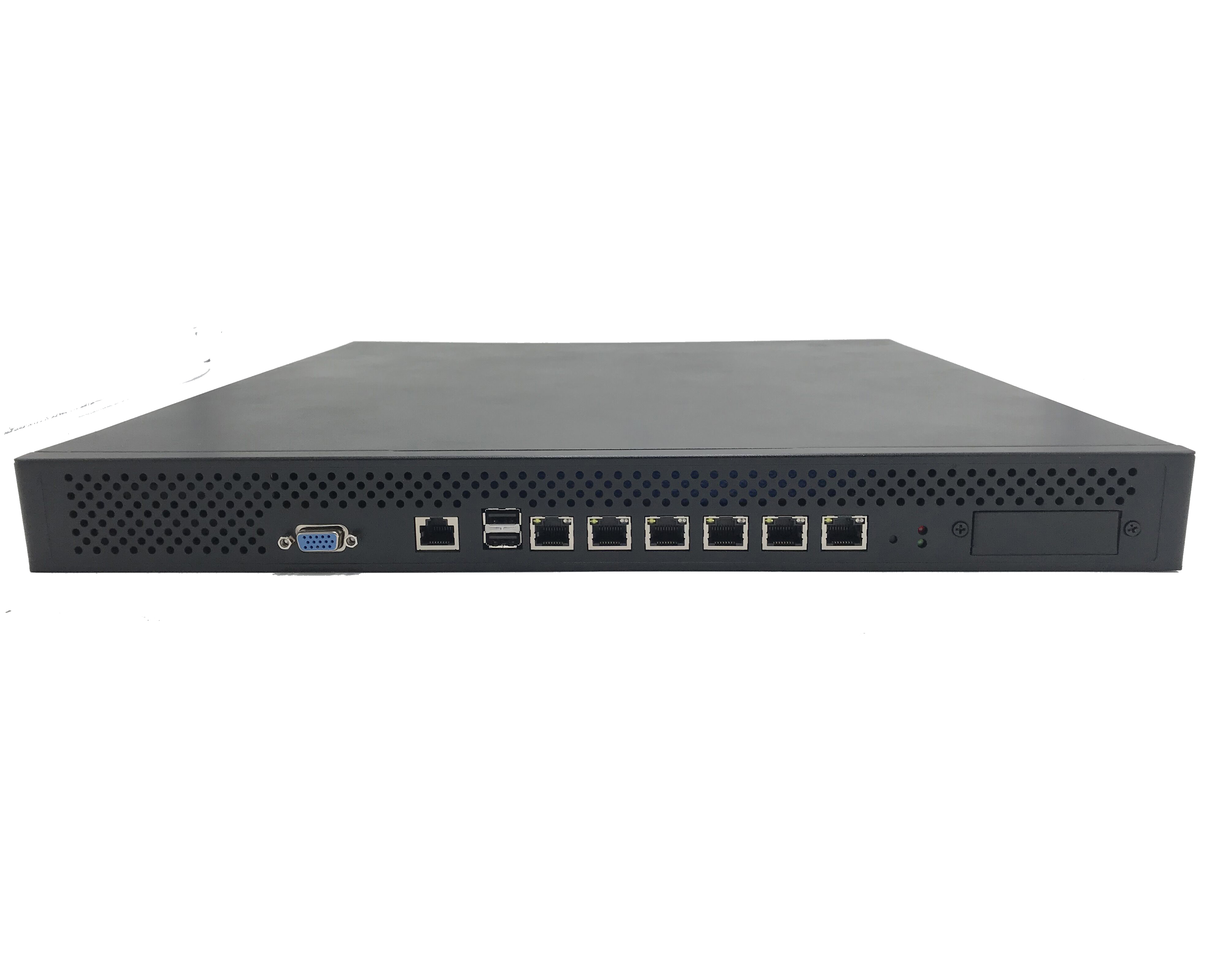

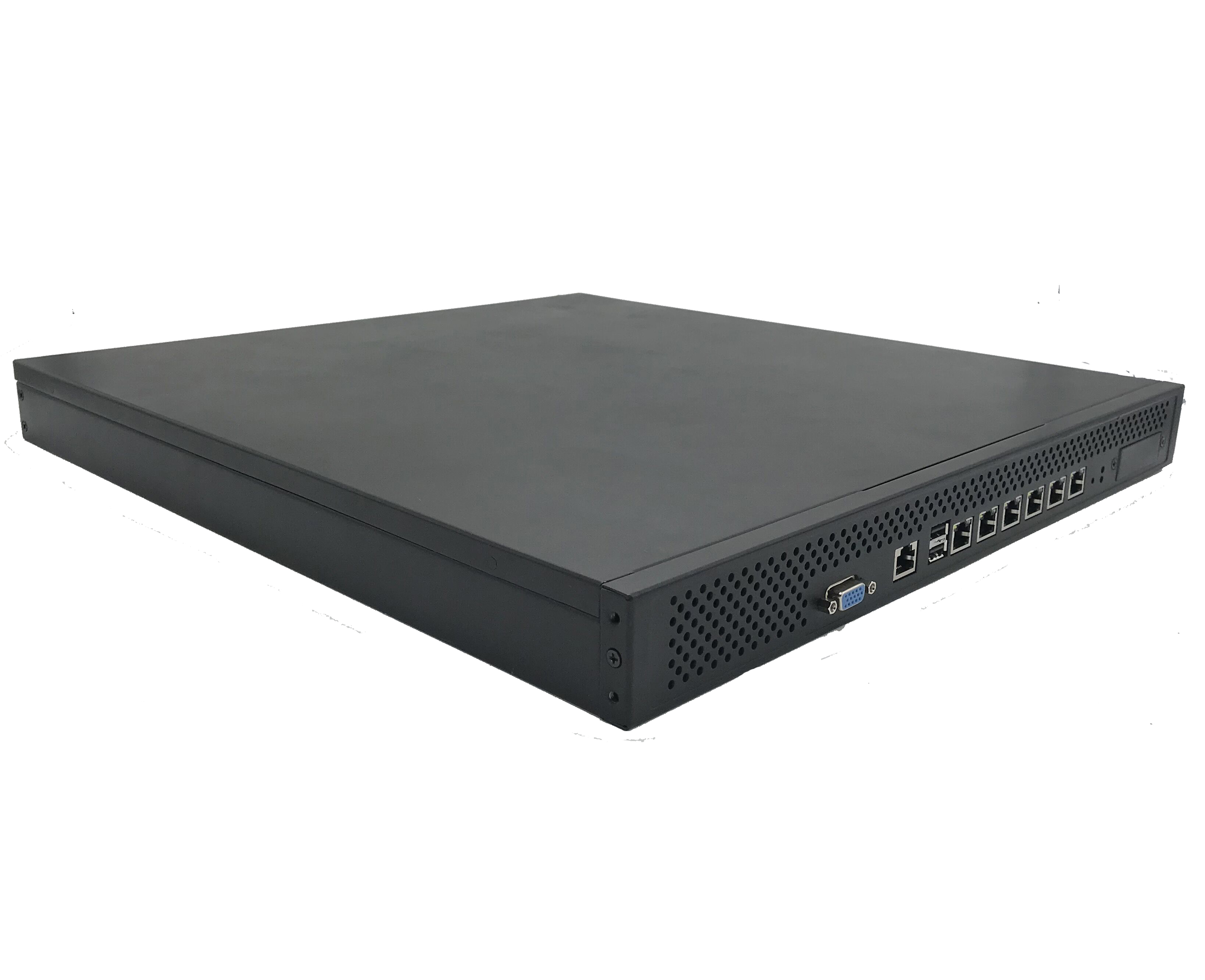

Intel Core i3/i5/i7 or Xeon E3 1275 V1/V2 Network Appliance

Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards, supports 2 pairs BYPASS(FWK-6761R-2OB)
Expandable to 2 x GbE(Intel NH825380DB) or 2 x 10GbE(Intel 82599ES) SFP ports
Provides 1 Mini PCIe slot, supports wifi, 3G modules
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Supports SSD, SATA HDD, CF card storage

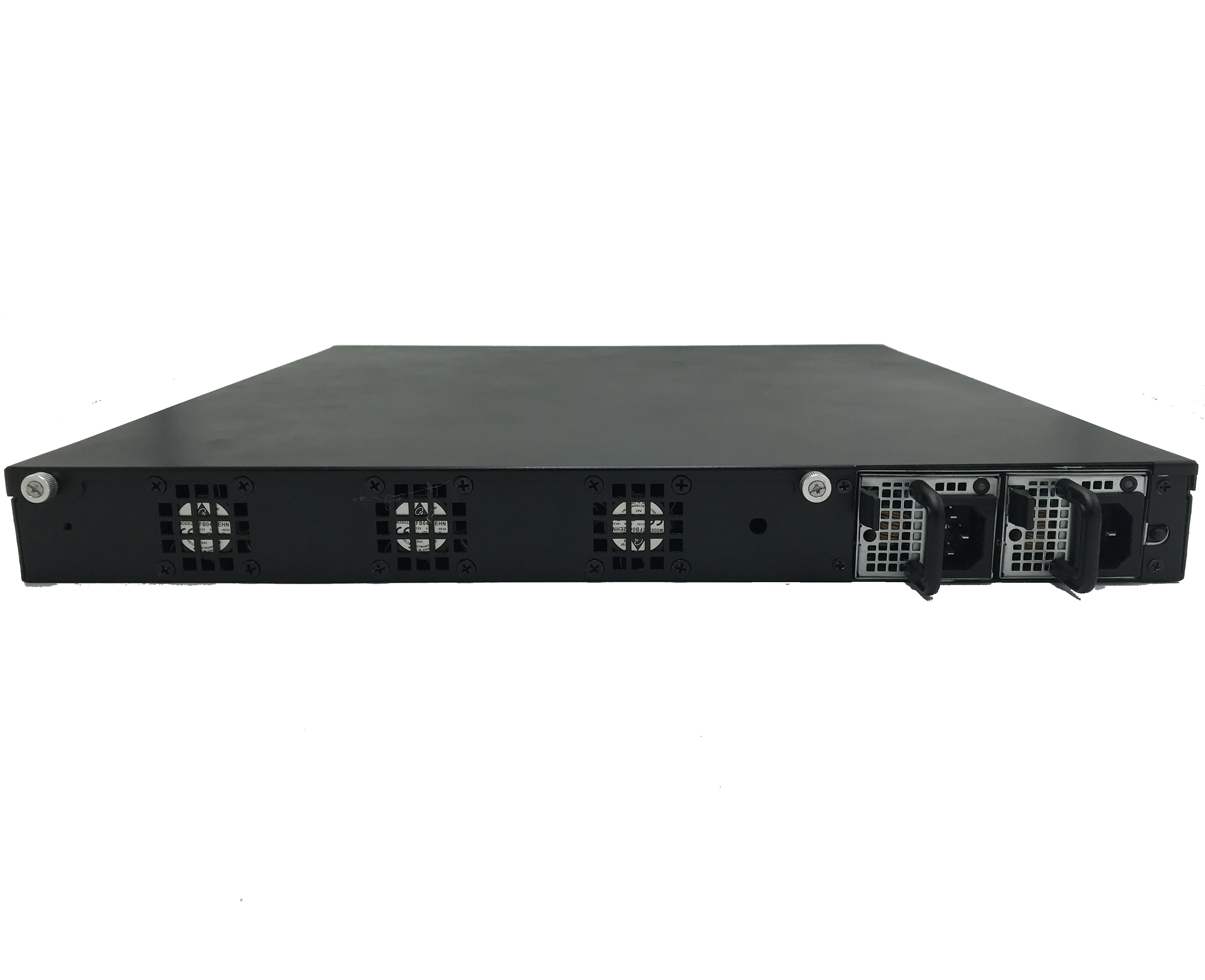

300W 1+1 Redundant PSU

　　
Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards, supports 2 pairs BYPASS(FWK-6761R-2OB)
Expandable to 2 x GbE(Intel NH825380DB) or 2 x 10GbE(Intel 82599ES) SFP ports
Provides 1 Mini PCIe slot, supports wifi, 3G modules
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Supports SSD, SATA HDD, CF card storage
300W 1+1 Redundant PSU
Model No. FWK-6761R-2O
Form Factor 1U 19” Rackmount
Platform Processor Options Intel Core i7/i5/i3, Pentium, Celeron or Xeon E3 1275 V1/V2 (Ivy Bridge or Sandy Bridge)
CPU Socket 1x LGA1155
Chipset Intel H67 or B75
Security Acceleration N/A
BIOS AMI SPI Flash BIOS
System Memory Technology DDR3 1600/1333MHz
Max. Capacity 16GB
Socket 2x 204pin SODIMM
Networking Ethernet Ports Integrated 6x GbE RJ45 Intel 82583V or
6x GbE RJ45 Intel 82574L
SFP Ports Expandable to 2 x GbE Intel NH82580DB or
2 x 10GbE Intel 82599ES
Bypass Optional
I/O Interface Reset Button -
LED Power/Storage
Power Button 1x Power button
Console 1x RJ45
USB 2x USB 2.0
LCD Module -
Display 1x VGA
Power Input AC power inlet on PSU
Storage HDD/SSD Support 2 x 2.5'' bays;
2 x 3.5’’ bays
Onboard Storage 1x m-SATA, 1x CF Socket(signal alternative to each other)
Expansion PCIe 1x PCIe X8
Mini-PCIe Yes
Miscellaneous Watchdog Yes
Internal RTC with Li Battery Yes
TPM -
Cooling Processor CPU fan
System 2x cooling fans
Environmental Parameters Temperature 0℃～45℃/ -20℃～70℃
Humidity 5 ~ 90% non condensing /
5 ~ 95%, non condensing
System Dimensions (WxHxD) 430x44.5x460mm
Weight 6.2 kg
Package Dimensions (WxHxD) 520x130x360mm
Weight 7.4 kg
Power Type/Watts 300W 1+1 Redundant PSU
220W ATX Single PSU
Input 90~264V@47~63Hz
Approvals and Compliance CE, FCC Class B
