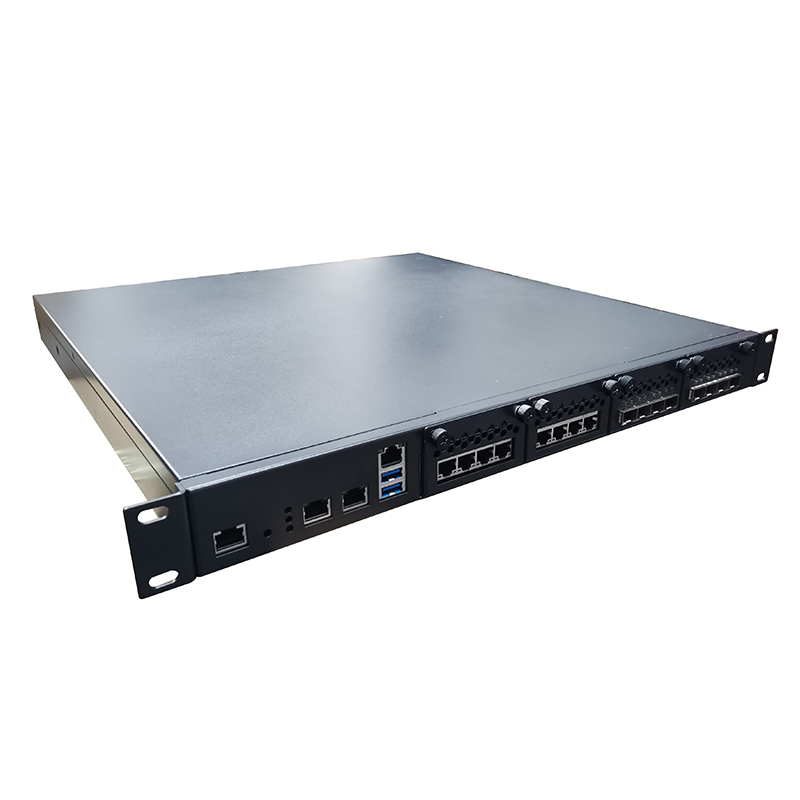

1U Rackmount Network Appliance with Intel Xeon E5 2600 v3/v4

　　1U Rackmount Network Appliance with Intel Xeon E5 2600 v3/v4 processors, 4 x NIC expansion, 2 x RJ45 onboard, 1 x console
Adopt Intel C612 chipset LGA 2011 platform
Support 1 x Intel® E5-2600 V3/V4 series processors
Onboard 4 x DDR4 DIMM RECC RAM, up to 128GB
2 x RJ45 Gigabit electrical ports onboard
2 x MSATA (SATA signal) and 2 x NVME (PCIE X4 and SATA signal)
Support 2 x 2.5-inch SATA hard drives

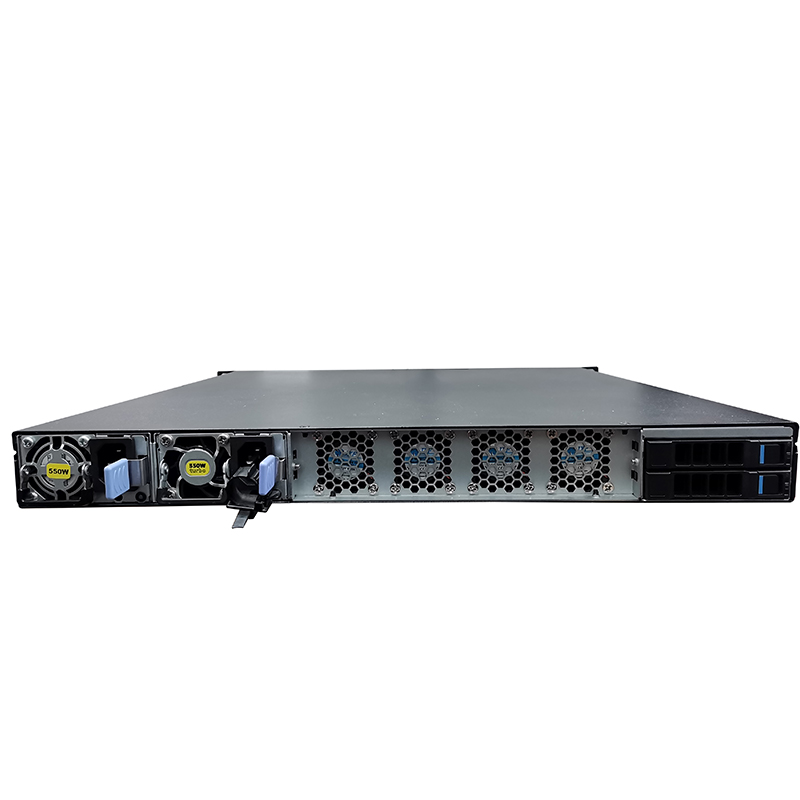

Support 2 x CRPS 550W redundant power supplies
Support IPMI via BMC AST2400
Specification:                           ATL-612N4S
Model No. ATL-612N4S
System 1U Rackmount
Platform Processor Options Support 1 x Intel Xeon E5 2600 v3/v4 processors LGA2011
Chipset Intel C612 chipset
Security Acceleration N/A
System Memory Technology Onboard 4 x DDR4 DIMM Memory Slots
Max. Capacity up to 128GB
Networking Ethernet Ports Onboard 2 x RJ45 Gigabit electrical ports with Intel I210AT chip
Detachable design, support 4 x network module expansion
Bypass Depending on the expansion module
USB Front 2 x USB3.0 ports
Storage HDD/SSD Support 2 x SATA 6Gb/S interfaces, 2 x MSATA, 2 x NVME
Expansion PCIe Standard 4 x PCIe x8 expansion slots
Management port Management port 1 x RJ45 serial port
1 x RJ45 IPMI port
Indicator light Indicator light Power status light, data transmission status light, alarm indicator
Working temperature and humidity Work 5~40℃,20%~90%
Storage -10~70℃, 5%~95%
Size 440 (width) x 500 (deep) x 88.5 (height) mm
Power configuration Power configuration CRPS 550W redundant power supplies
Approvals and Compliance  CE, FCC, RoHS


Packing List
1 SATA data cable
2 Power cord 3P 180cm, China
3                    Rack ears
4 Accessory screw bag
Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4                     Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India
